NEMA 4X Exit Combo
Weatherproof Exit Sign w/ 2 or 3 Heads, Battery Backup or AC Only
Overview
Precision molded industrial fiberglass LED exit and emergency combination for wet or harsh environments - food processing plants, outdoor stadiums and wash down areas. The crystal clear acrylic door is fully gasketed and fixed with 4 weatherproof screws. Bright, even legend illumination in normal AC operation and on battery backup, with 2 or 3 sealed beam PAR 36 lamp heads.
Explore similar products
NEMA4X Exit Series
Wet Location / Industrial Products
NEMA 4X
4X
Housing
Fiberglass
Battery
NiCad or AC Only
Power
NEMA4X Exit Series
Wet Location / Industrial Products
NEMA 4X
4X
Housing
Fiberglass
Battery
NiCad or AC Only
Power
NEMA EX Series
Wet Location / Industrial Products
NEMA 4X
EX
Housing
Fiberglass
Battery
Lead Calcium
Power
6 or 12V, 15-72W
NEMA EX Series
Wet Location / Industrial Products
NEMA 4X
EX
Housing
Fiberglass
Battery
Lead Calcium
Power
6 or 12V, 15-72W

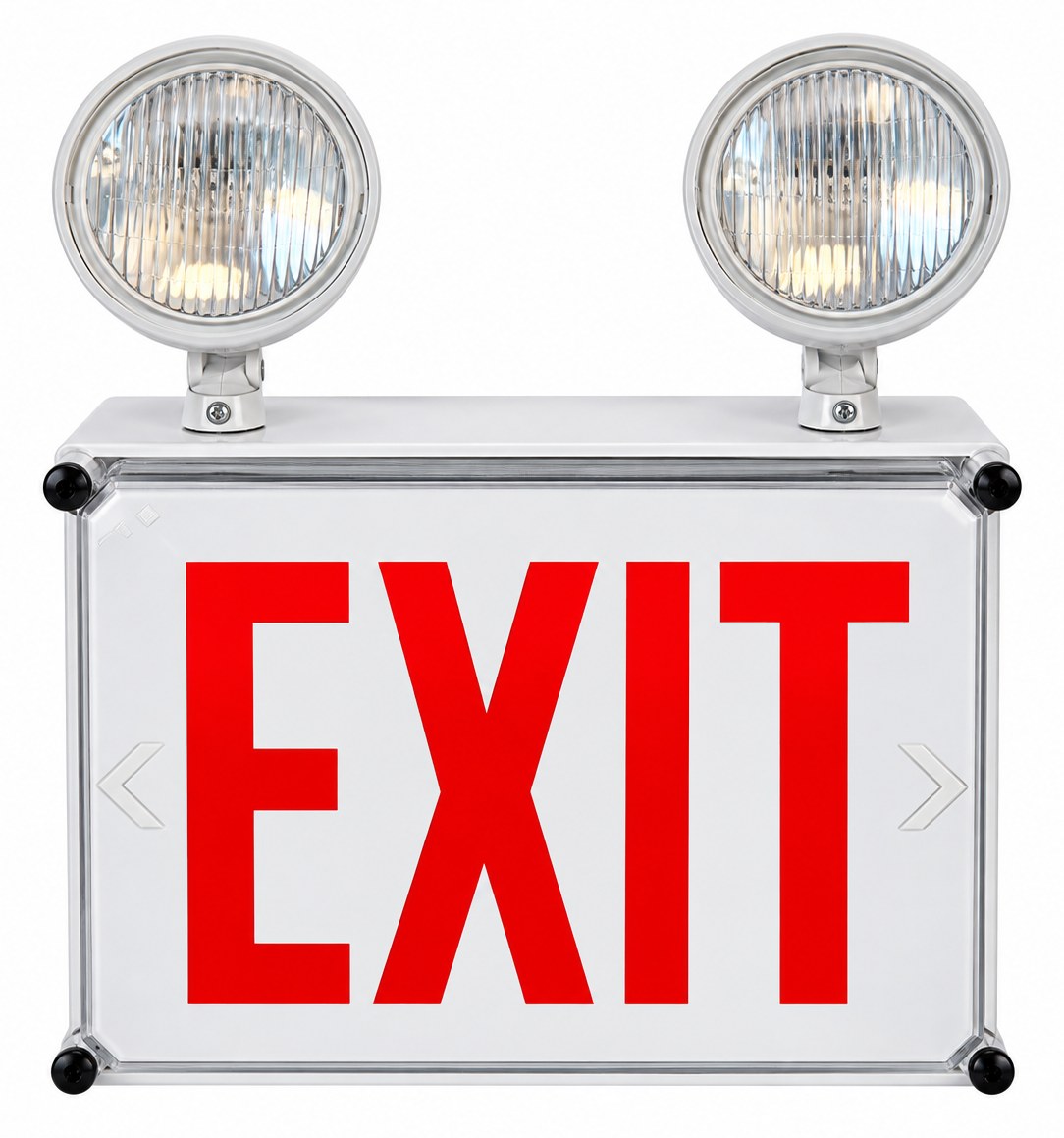

NEMA 4X Exit Combo
Weatherproof Exit Sign w/ 2 or 3 Heads, Battery Backup or AC Only
Overview
Precision molded industrial fiberglass LED exit and emergency combination for wet or harsh environments - food processing plants, outdoor stadiums and wash down areas. The crystal clear acrylic door is fully gasketed and fixed with 4 weatherproof screws. Bright, even legend illumination in normal AC operation and on battery backup, with 2 or 3 sealed beam PAR 36 lamp heads.
Specifications
Mounting Type
Wall (pole mounted brackets optional)
Housing Spec
Watertight, corrosion resistant fiberglass, fully gasketed front cover, crystal clear acrylic door
Power
2.5W (120V) | 2.7W (277V)
Battery Spec
VRLA
Compliance
UL 924 | UL wet location | NFPA 101 | NEC | OSHA | NEMA 3, 3R, 4, 4X, 12, 13 | NYC approved option (MEA/BEC, Local Laws 16 & 41)
Phase
None
Features
Standard Features
UL wet location listed fiberglass housing | NEMA 3, 3R, 4, 4X, 12 and 13 | Fully gasketed acrylic door | AllnGaP LED exit, brighter on battery | 2 or 3 weatherproof PAR 36 heads | Sealed test switch and AC-on indicator | Line latching, brownout protection | 8 or 6 inch letters
Available Options
8 inch letters (8) | 6 inch letters (6) | 1, 2 or 3 heads (3 heads not on 6 inch) | NYC approved (NY) | Pole mounted brackets (PMB)
NEMA 4X Exit Combo
Contact us to get a quote about this product
Features
Fiberglass
Housing
Exit + 2 or 3 PAR 36 Heads
Faces
VRLA
Battery
120/277 VAC
Voltage
Warranty
5yr battery pro-rata | 25yr LED lamps | 5yr charger board
