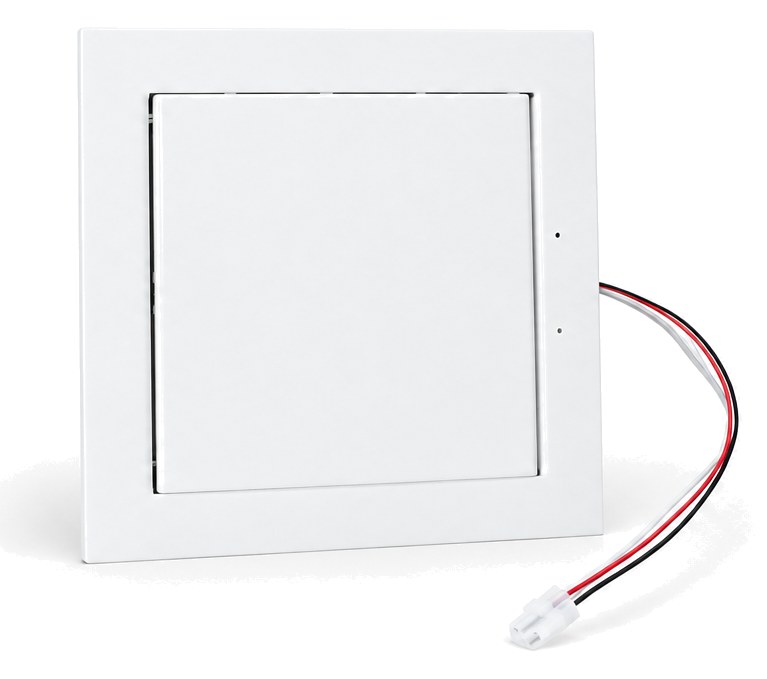

Mirage Series
Recessed Emergency
Concealed
EMR
Housing
Steel
Battery
Lead Calcium
Power
27-150W
Mirage Series
Recessed Emergency
Concealed
EMR
Housing
Steel
Battery
Lead Calcium
Power
27-150W

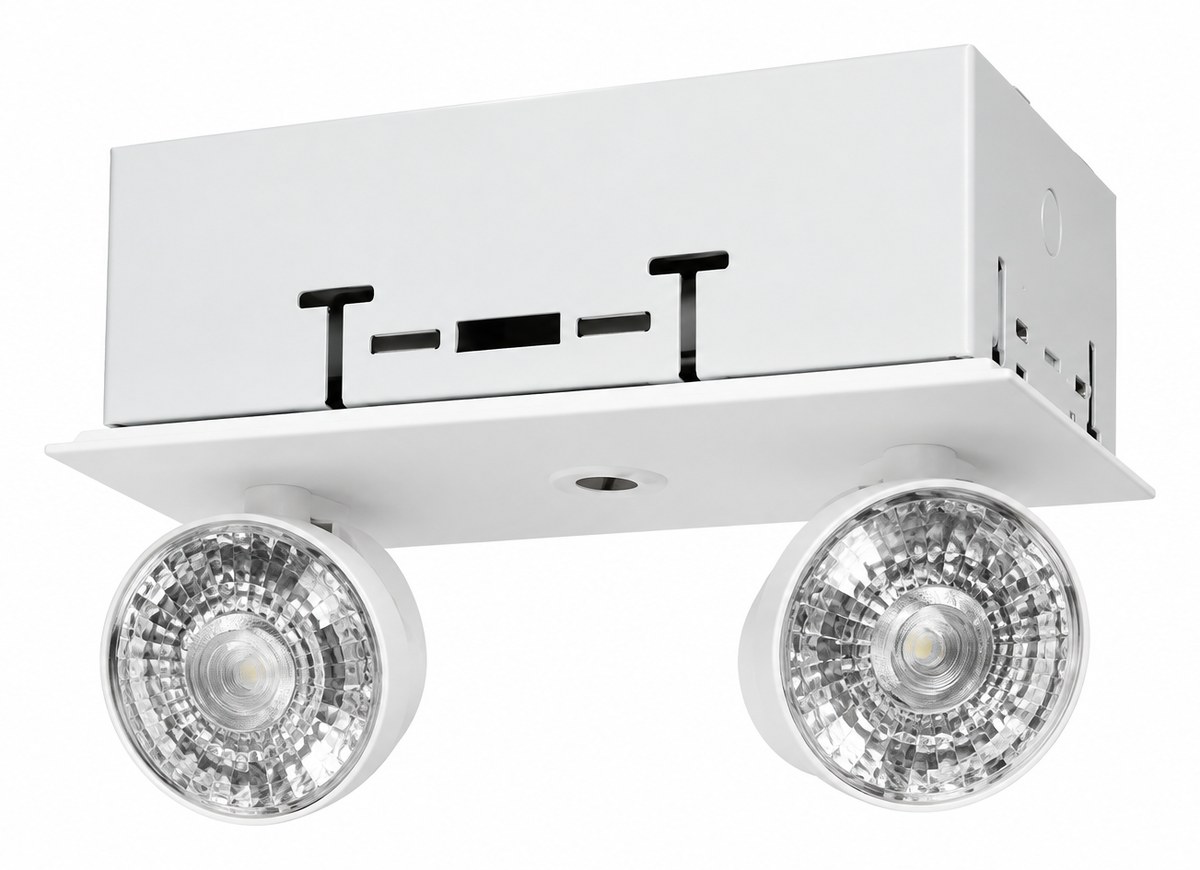

EROB Series
Recessed Emergency
Recessed
EROB
Housing
Steel
Battery
Lead Calcium
Power
6 or 12V, 15-72W
EROB Series
Recessed Emergency
Recessed
EROB
Housing
Steel
Battery
Lead Calcium
Power
6 or 12V, 15-72W

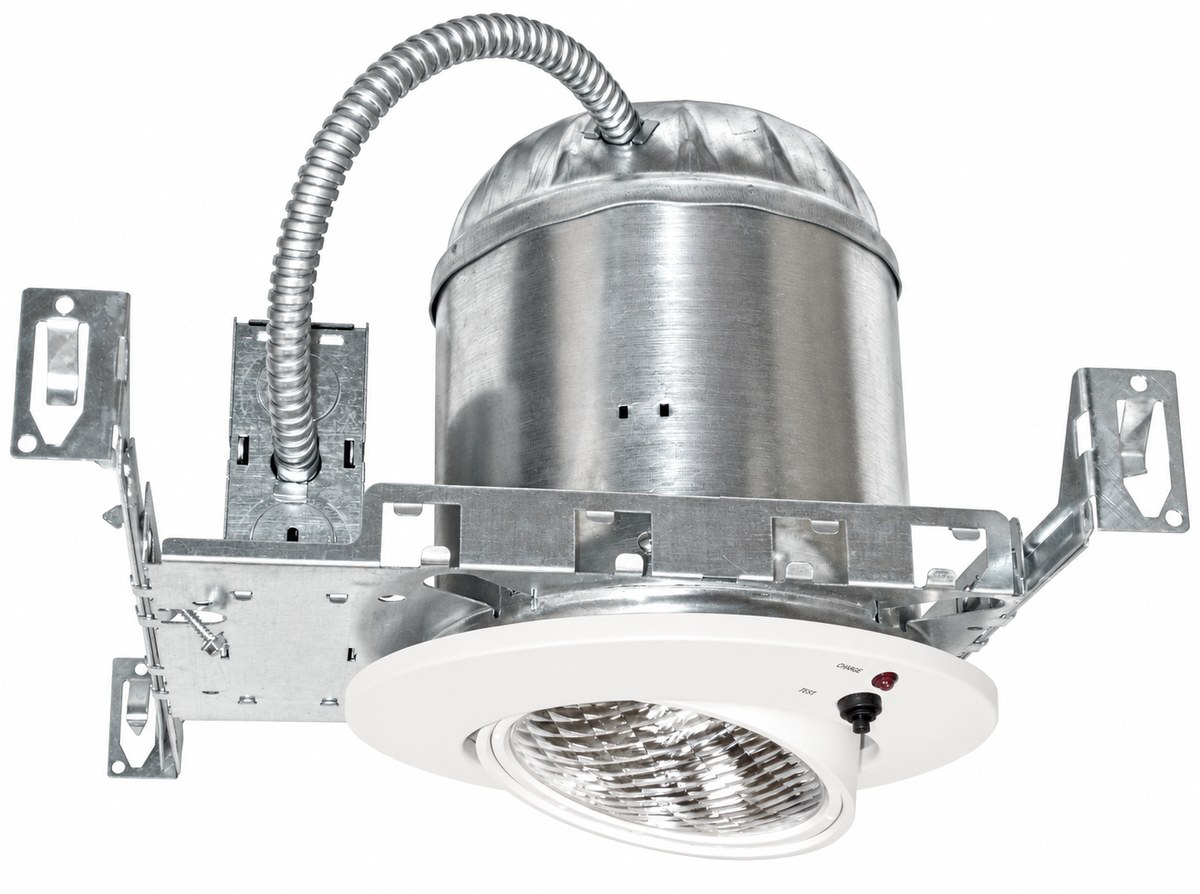

ERG Series
6 or 12 Volt Recessed Gimbal Ring Lead Calcium Battery
Overview
Fully recessed self-contained emergency unit combining recessed downlighting aesthetics with emergency functionality. Par 36 sealed beam lamp in gimbal ring with 45-degree adjustment. New work or retrofit. Powers remotes or full output up to 4 hours.
Specifications
Mounting Type
Recessed Ceiling, New Work or Retrofit
Housing Spec
18-gauge die-formed steel
Power
6 or 12V
Battery Spec
Lead Calcium
Compliance
UL 924 | NFPA 101 | NEC | OSHA | NYC approved (MEA/BEC) | NYC Local Laws 16 & 41
Phase
None
Features
Standard Features
18-gauge steel | Par 36 sealed beam | Gimbal ring 45-degree aim | New work or retrofit | 6 or 12 volt | Powers remotes | Up to 4hr full output
Available Options
Specular clear trim (SC) | Specular gold trim (SG) | Time delay (TD) | IR test option (IR) | IR remote unit (IRRM) | NYC approved (NY) | Retrofit can (R) | 12 volt 25 watt lamp (12RS25) | Adjustable mounting bars (AB1)
ERG Series
Contact us to get a quote about this product
Features
Steel
Housing
1 Par 36 Sealed Beam
Faces
Lead Calcium
Battery
120/277 VAC
Voltage
Warranty
5yr battery pro-rata | 5yr charger board
