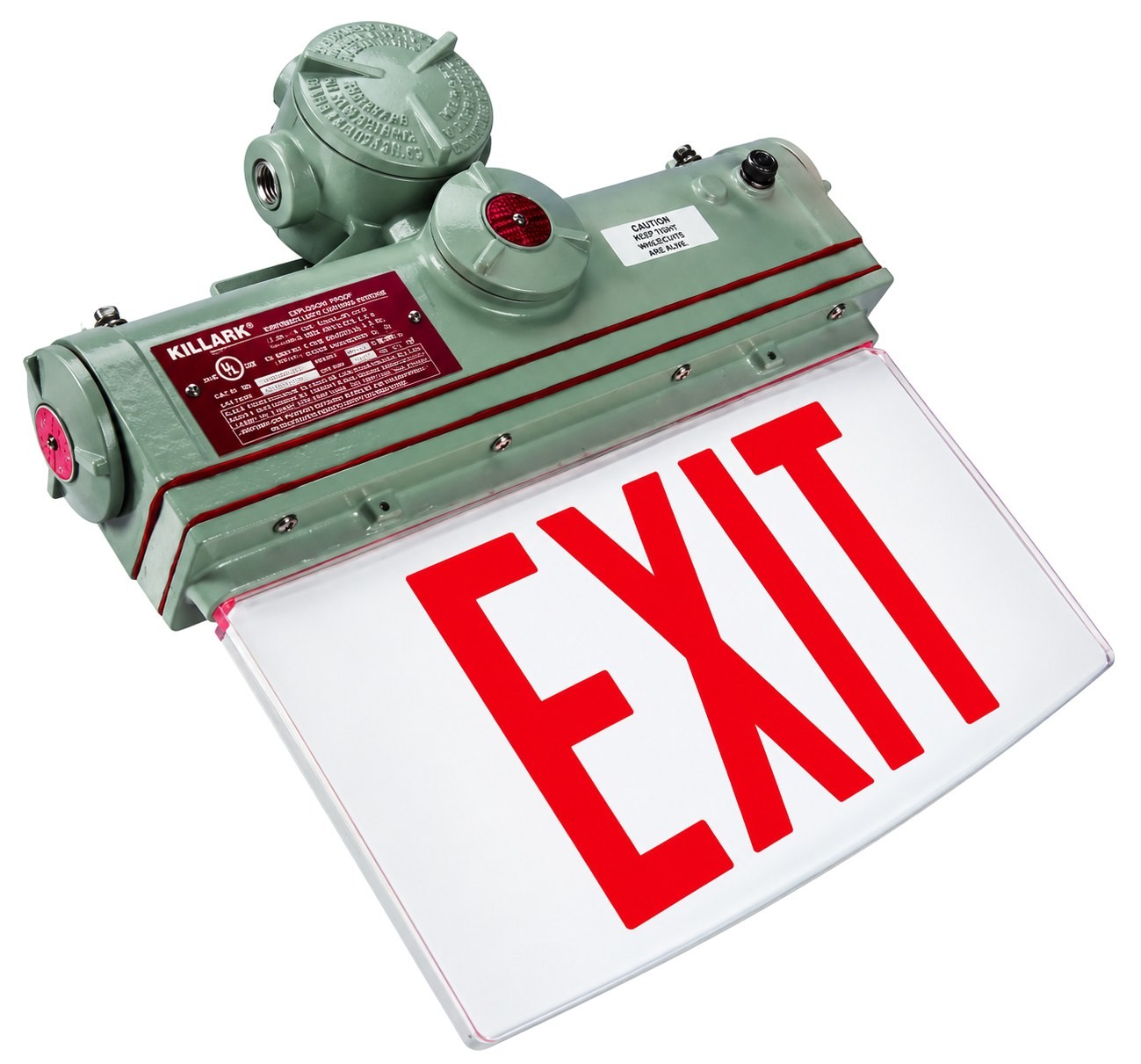

E-XEX
Explosion Proof Edge-Lit LED Exit Signs
Overview
Explosion-proof edge-lit LED exit for hazardous locations, rated Class I, Div. 1, Groups C and D and Class II, Div. 1, Groups E, F and G. Heavy copper-free cast aluminum housing with a baked-on epoxy powder finish, 1/2 inch NPT conduit hubs and durable acrylic lenses. A maintenance-free LED source with 25+ year life expectancy edge-lights the panel. Three hours of emergency operation is standard with battery backup. Wall / pendant or end mount, single or double face.
Specifications
Mounting Type
Wall/Pendant or End Mount
Housing Spec
Copper-free cast aluminum, epoxy powder finish
Power
3.0W max
Battery Spec
AC Only
Compliance
UL 844 | UL 8750 | UL 924 | UL 1598A Marine Outside Type | IP65 | NFPA 70 | NFPA 101 | EPA Energy Star | OSHA | T6
Phase
None
Features
Standard Features
Explosion-proof cast aluminum | Class I Div 1 Groups C and D | Class II Div 1 Groups E, F and G | Maintenance-free LED, 25+ year life | 3-hour battery backup | 1/2 inch NPT hubs | IP65 | Red or green legends
Available Options
Green running man (EU) | Self-diagnostic (SD) | AC sign only (AC) | Battery backup (SP) | Wall/pendant (WP) | End bracket (EB)
E-XEX
Contact us to get a quote about this product
Features
Die-Cast Aluminum
Housing
Single or Double
Faces
AC Only
Battery
None
Voltage
