E-WL
Wet Location Exit Signs
Overview

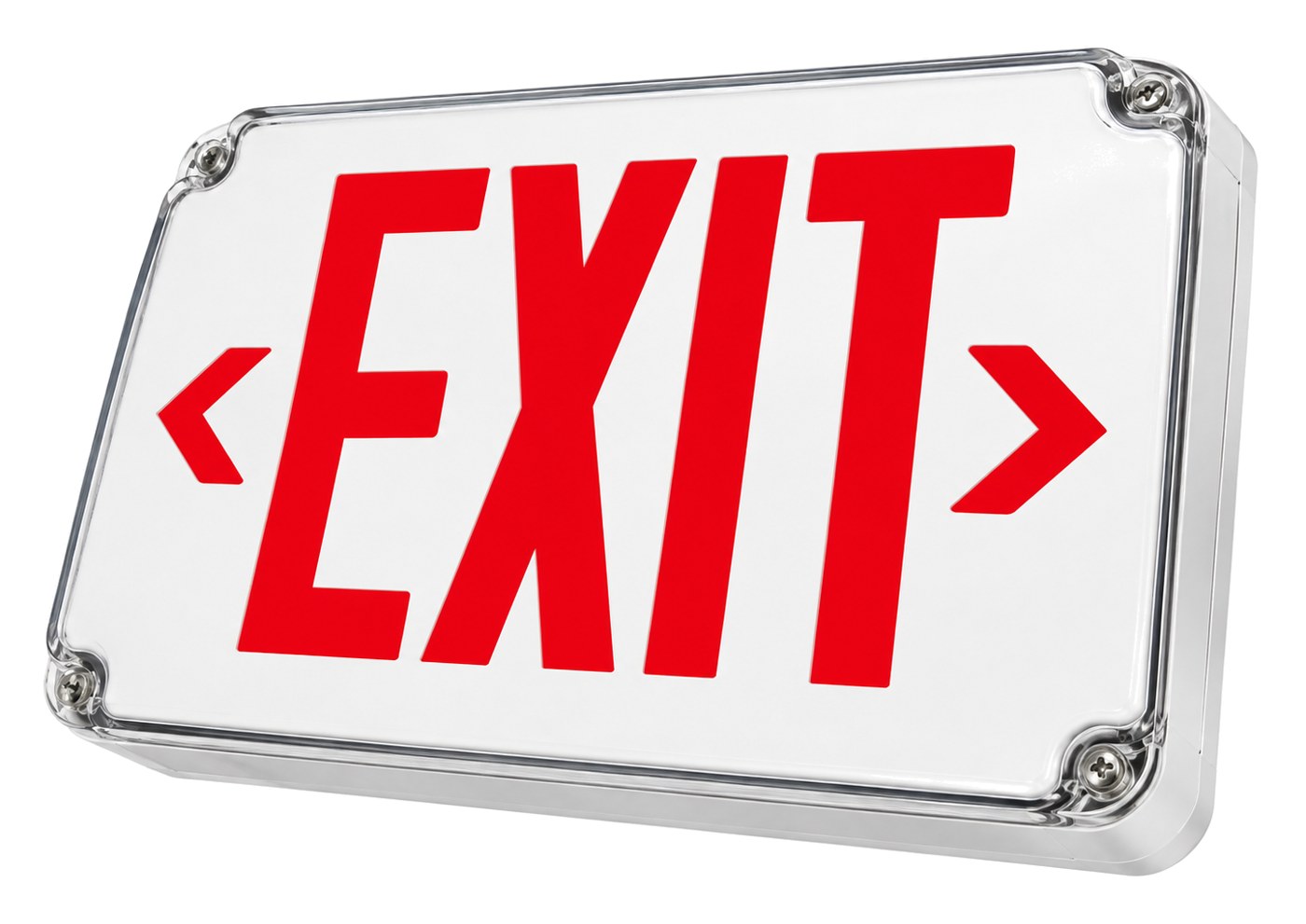

Wet location exit sign in an injection-molded, engineering-grade 5VA flame-retardant thermoplastic housing with a high-impact, UV-stabilized clear lens and silicone gasket. Illuminated by high-intensity red or green LEDs at 3.8 watts. Listed for cold and wet locations from -20C to 50C. Available as AC only or with a sealed NiCad battery backup for a minimum of 90 minutes of emergency operation.
Explore similar products
NEMA4X Exit Series
Wet Location / Industrial Products
NEMA 4X
4X
Housing
Fiberglass
Battery
NiCad or AC Only
Power
NEMA4X Exit Series
Wet Location / Industrial Products
NEMA 4X
4X
Housing
Fiberglass
Battery
NiCad or AC Only
Power
NEMA EX Series
Wet Location / Industrial Products
NEMA 4X
EX
Housing
Fiberglass
Battery
Lead Calcium
Power
6 or 12V, 15-72W
NEMA EX Series
Wet Location / Industrial Products
NEMA 4X
EX
Housing
Fiberglass
Battery
Lead Calcium
Power
6 or 12V, 15-72W
E-WL
Wet Location Exit Signs
Overview
Wet location exit sign in an injection-molded, engineering-grade 5VA flame-retardant thermoplastic housing with a high-impact, UV-stabilized clear lens and silicone gasket. Illuminated by high-intensity red or green LEDs at 3.8 watts. Listed for cold and wet locations from -20C to 50C. Available as AC only or with a sealed NiCad battery backup for a minimum of 90 minutes of emergency operation.
Specifications
Mounting Type
End or Ceiling (canopy supplied)
Housing Spec
5VA flame-retardant thermoplastic, UV-stabilized lens, silicone gasket
Power
3.8W at 120/277V
Battery Spec
NiCad
Compliance
UL 924 | UL cold/wet location | NFPA 101 | NEC
Phase
None
Features
Standard Features
Universal 120/277V field-selectable input | 5VA flame-retardant thermoplastic | UV-stabilized clear lens | Silicone gasket | Top and side conduit knockouts | EZ snap-out chevrons | Single or double face | AC lockout | Low-voltage disconnect | AC-ready LED indicator | Brownout protection | Momentary test switch | Cold/wet location listed (-20C to 50C)
Available Options
Self-diagnostic (E) | Dual circuit (2C) | Tamper proof (TP) | Black housing (B)
E-WL
Contact us to get a quote about this product
Features
Thermoplastic
Housing
Single or Double
Faces
NiCad
Battery
120/277 VAC
Voltage
Warranty
1yr entire unit | 5yr battery pro-rata
