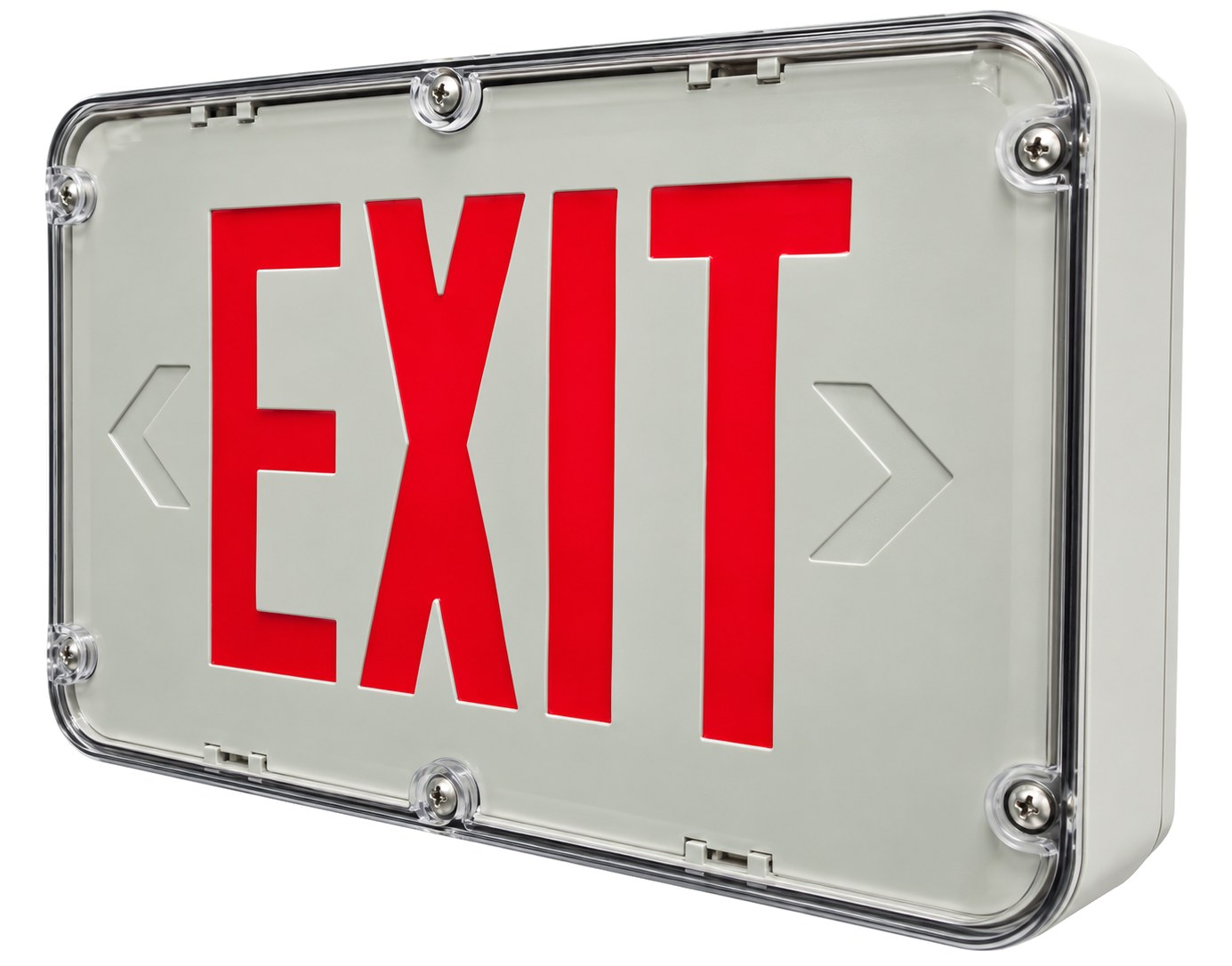

E-THLE
Class 1 Div 2 Exit Signs


Overview
Exit sign rated for Class 1 Div 2, Groups A, B, C and D. The gray reinforced polycarbonate housing uses a one-piece, high-impact, UV-stabilized polycarbonate lens and molded gasket with stainless steel screws. NEMA 4X, IP66 and NSF rated, UL listed for wet locations and UL certified for food service. Available AC only or with a 4.8V sealed NiCad battery for a minimum of 90 minutes emergency operation.
Specifications
Mounting Type
Wall, Conduit or Pendant
Housing Spec
Reinforced polycarbonate, gray, gasketed
Power
3W (120/277V)
Battery Spec
NiCad or AC Only
Compliance
UL 924 | NFPA 101 | Class 1 Div 2 Groups A, B, C and D | NEMA 4X | IP66 | NSF | CEC Title 20 | UL wet location | UL food service
Phase
None
Features
Standard Features
Class 1 Div 2 Groups A, B, C and D | Reinforced polycarbonate housing | Stainless steel screws | Snap-out chevron arrows | Red or green LEDs | Universal 120/277V field selectable input | Two-rate charger, 24hr recharge | Bi-color status indicator | Magnetic test switch | Die-cast wall brackets | Pre-installed conduit hub
Available Options
Self-diagnostic (E) | Tamper proof (TP)
E-THLE
Contact us to get a quote about this product
Features
Polycarbonate
Housing
Single or Double
Faces
NiCad or AC Only
Battery
120/277 VAC
Voltage
Warranty
1yr entire unit | 5yr battery pro-rata
