E-T4XE
NEMA 4X & NSF Rated Exit Signs

Overview

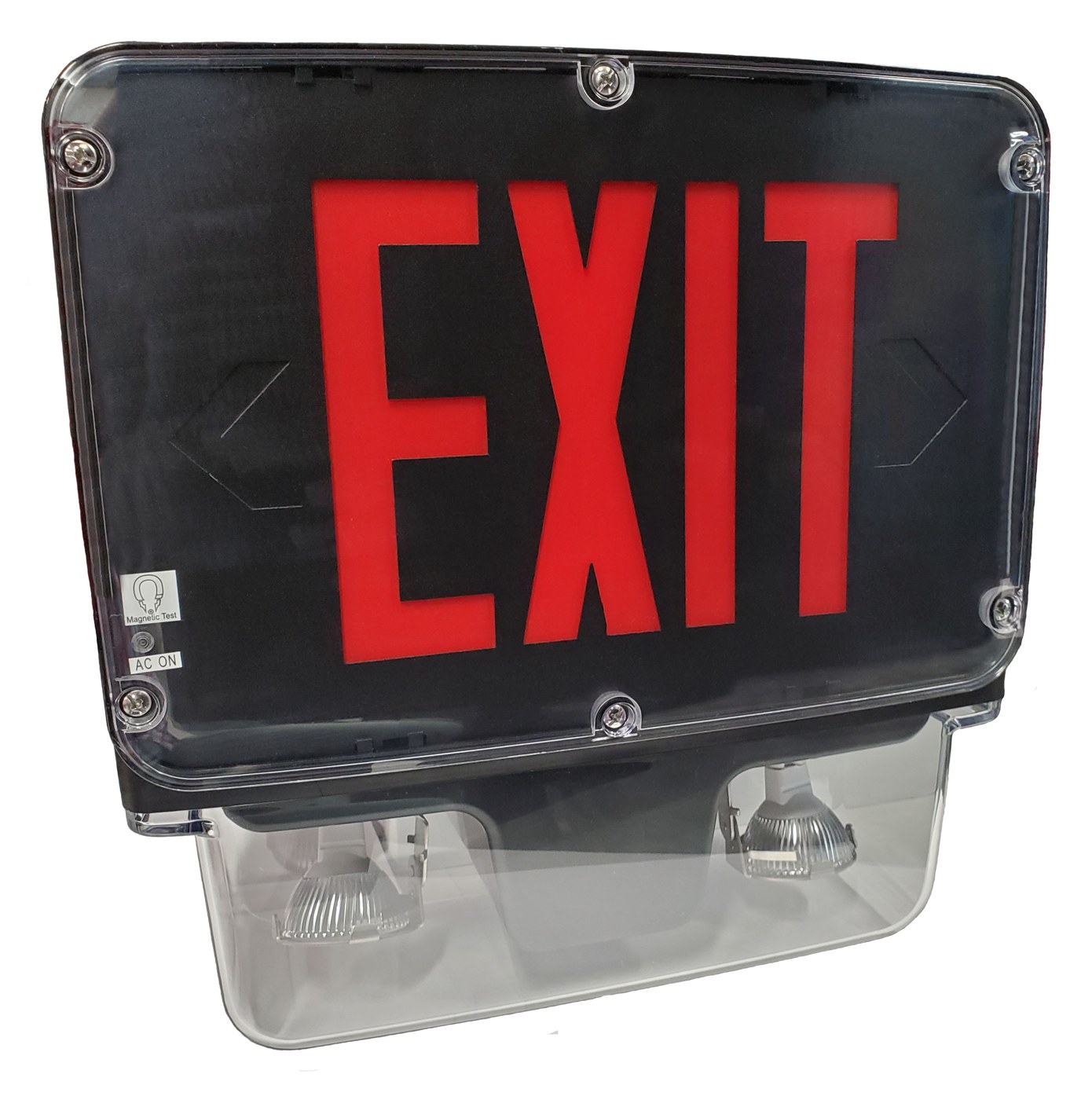

NEMA 4X, IP66 and NSF rated LED exit sign, UL listed for wet locations and certified for food service. Reinforced polycarbonate housing in white or black with a one-piece UV-stabilized polycarbonate lens, molded gasket and stainless steel screws. High-intensity red or green LEDs at 3 watts. Battery backup models use a 4.8V sealed NiCad battery for a minimum of 90 minutes of emergency operation, recharged within 24 hours.
Explore similar products

NEMA4X Exit Series
Wet Location / Industrial Products
NEMA 4X
4X
Housing
Fiberglass
Battery
NiCad or AC Only
Power

NEMA4X Exit Series
Wet Location / Industrial Products
NEMA 4X
4X
Housing
Fiberglass
Battery
NiCad or AC Only
Power

NEMA EX Series
Wet Location / Industrial Products
NEMA 4X
EX
Housing
Fiberglass
Battery
Lead Calcium
Power
6 or 12V, 15-72W

NEMA EX Series
Wet Location / Industrial Products
NEMA 4X
EX
Housing
Fiberglass
Battery
Lead Calcium
Power
6 or 12V, 15-72W
E-T4XE
NEMA 4X & NSF Rated Exit Signs


Overview
NEMA 4X, IP66 and NSF rated LED exit sign, UL listed for wet locations and certified for food service. Reinforced polycarbonate housing in white or black with a one-piece UV-stabilized polycarbonate lens, molded gasket and stainless steel screws. High-intensity red or green LEDs at 3 watts. Battery backup models use a 4.8V sealed NiCad battery for a minimum of 90 minutes of emergency operation, recharged within 24 hours.
Specifications
Mounting Type
Universal (wall, end, ceiling)
Housing Spec
Reinforced polycarbonate, white or black
Power
3W (120/277V)
Battery Spec
NiCad or AC Only
Compliance
UL 924 | NFPA 101 | NEMA 4X | IP66 | NSF | CEC Title 20 | UL wet location | UL certified food service
Phase
None
Features
Standard Features
NEMA 4X, IP66 and NSF rated | Wet location listed (-20C to 50C) | Reinforced polycarbonate | Stainless steel screws | Red or green LEDs | Universal 120/277V field-selectable | EZ snap-out chevrons | Bi-color battery indicator | Magnetic test switch | Canopy included
Available Options
Self-diagnostic (E) | Dual circuit 120V (2CK1) | Dual circuit 277V (2CK2) | Tamper proof (TP) | AC sign only (AC) | Battery backup (SP) | White or black housing (W, B)
E-T4XE
Contact us to get a quote about this product
Features
Polycarbonate
Housing
Single or Double
Faces
NiCad or AC Only
Battery
120/277 VAC
Voltage
Warranty
1yr entire unit | 5yr battery pro-rata
