E-SWX
Swing Edge Lit
Overview

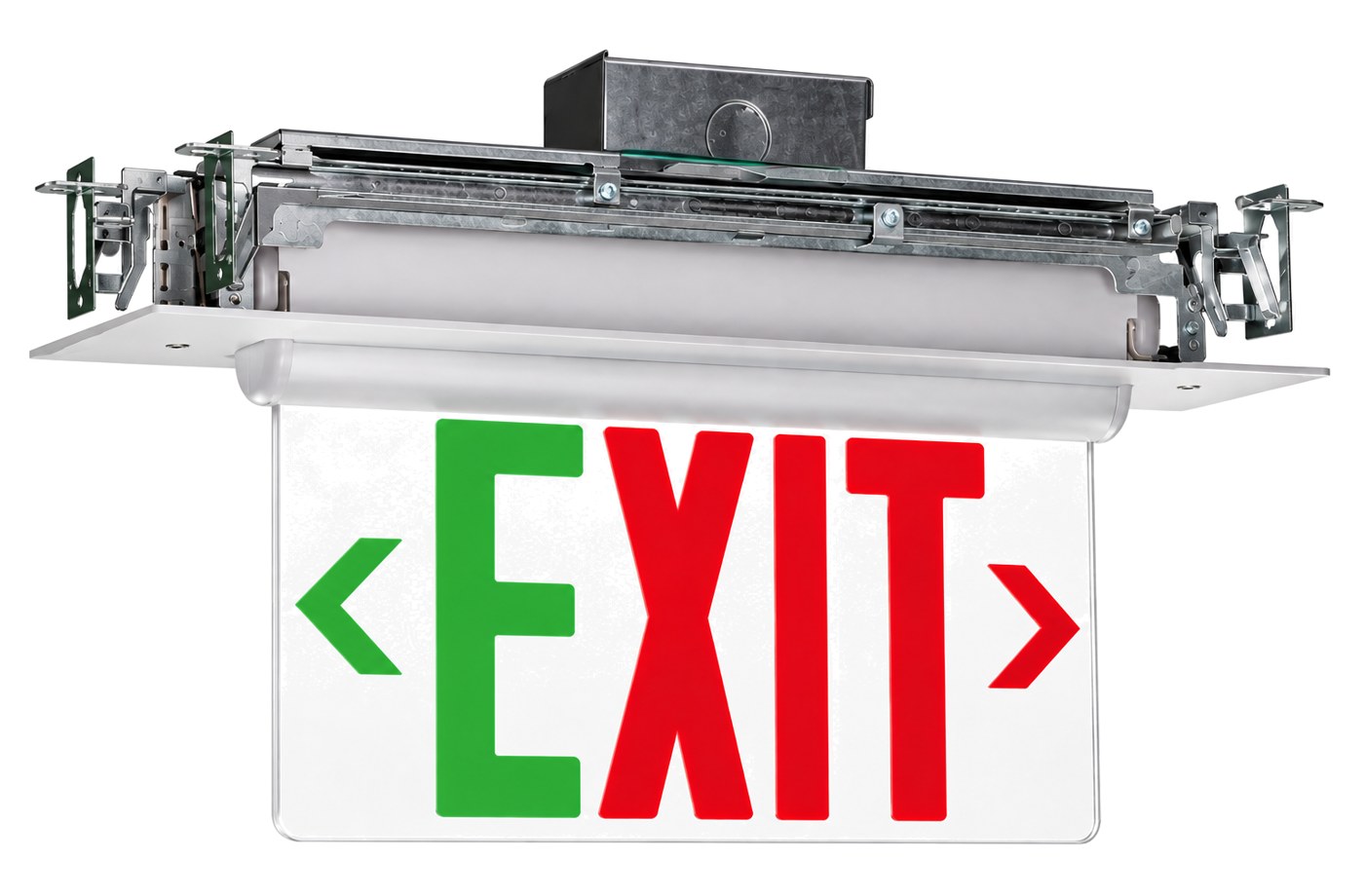

Swing edge lit exit sign with an extruded aluminum housing and high-grade acrylic panel. Pivoting design installs on a wall, ceiling, sloped ceiling or recessed. Illuminated by high intensity red or green LEDs. Available as AC only or with a sealed NiCad battery backup giving a minimum of 90 minutes of emergency operation. All models draw less than 5 watts.
Explore similar products
UNO Series
Exits
Edge Lit
HXS
Housing
Die-Cast Aluminum
Battery
NiCad
Power
1.9W (AC only) | 2.2-2.5W (battery)
UNO Series
Exits
Edge Lit
HXS
Housing
Die-Cast Aluminum
Battery
NiCad
Power
1.9W (AC only) | 2.2-2.5W (battery)
LSA Series
Exits
Steel
LSA
Housing
Steel
Battery
AC Only
Power
2.5W (120V) | 2.7W (277V)
LSA Series
Exits
Steel
LSA
Housing
Steel
Battery
AC Only
Power
2.5W (120V) | 2.7W (277V)
E-SWX
Swing Edge Lit
Overview
Swing edge lit exit sign with an extruded aluminum housing and high-grade acrylic panel. Pivoting design installs on a wall, ceiling, sloped ceiling or recessed. Illuminated by high intensity red or green LEDs. Available as AC only or with a sealed NiCad battery backup giving a minimum of 90 minutes of emergency operation. All models draw less than 5 watts.
Specifications
Mounting Type
Universal (wall, ceiling, sloped ceiling, recessed)
Housing Spec
Extruded aluminum, high-grade acrylic panel
Power
Less than 5W
Battery Spec
NiCad
Compliance
UL damp location | NEC | CEC | NFPA 101
Phase
None
Features
Standard Features
Universal 120/277V field selectable input | Suitable for existing drywall | Single and double-face panels (SWXU/SWXUM) | Surface canopy and recessed bracket included | Field-selectable chevrons | UL listed damp locations | CEC compliant | 90-min NiCad battery (emergency models) | 24hr recharge | Low battery voltage disconnect | AC lockout | AC ready LED indicator | Momentary test switch
Available Options
Self diagnostic (E) | White finish (W) | Black finish (B) | Brushed aluminum finish (A) | 12 inch pendant mount (ER1) | 24 inch pendant mount (ER2) | Pendant adapter (PA)
E-SWX
Contact us to get a quote about this product
Features
Extruded Aluminum
Housing
Single or Double
Faces
NiCad
Battery
120/277 VAC
Voltage
Warranty
3yr entire unit | 5yr battery pro-rata
