E-PFX
Thermo Plastic Edge Lit
Overview

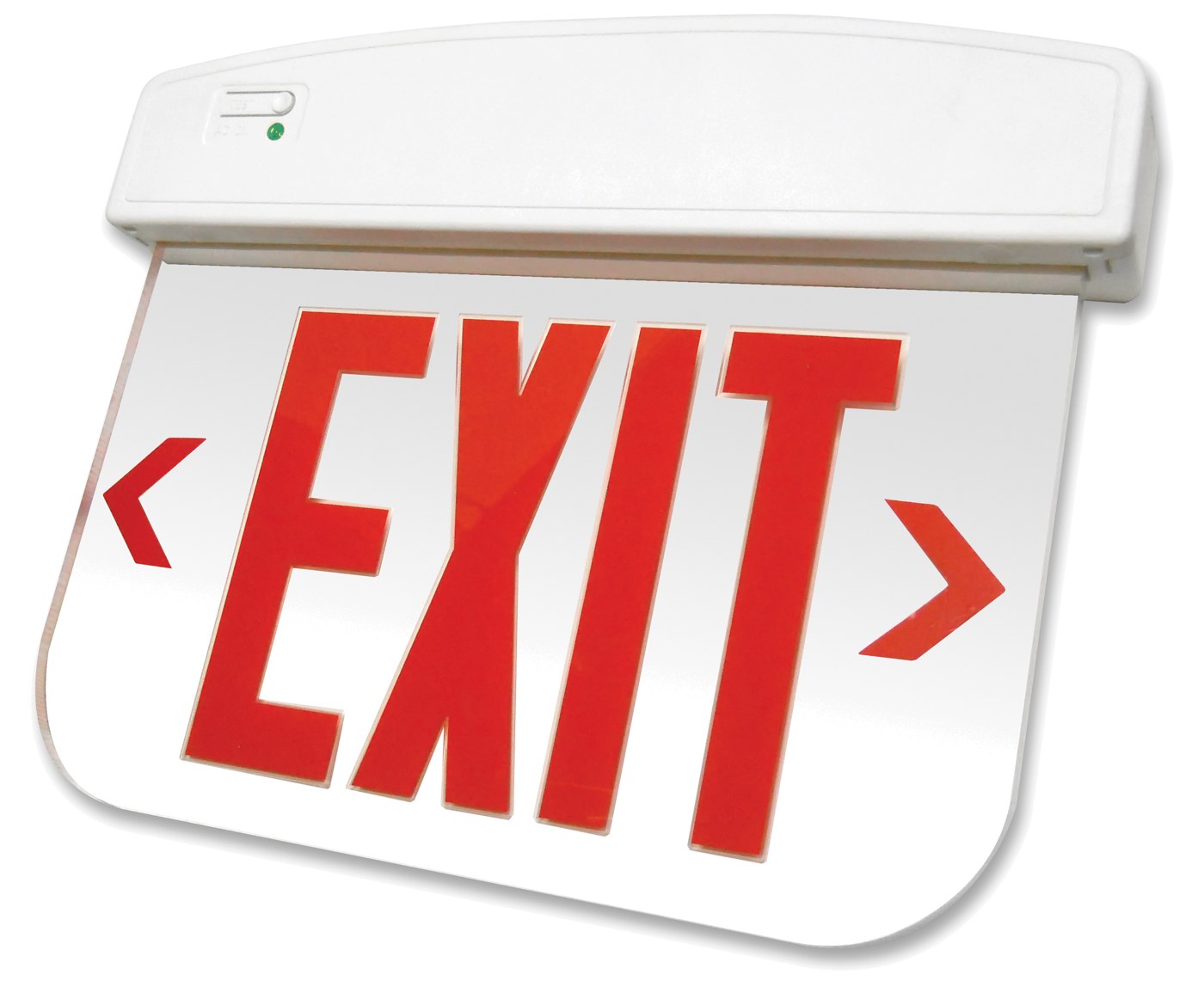

Edge lit exit sign with an injection-molded, engineered grade, 5VA flame retardant, high impact thermoplastic housing in silver, black or white. Illuminated by high-intensity red or green LEDs meeting UL uniformity requirements. Available AC only (E-PFXAC) or with sealed NiCad battery backup (E-PFXSP) giving a minimum of 90 minutes emergency operation. Thermoplastic canopy included for top, end or back mount.
Explore similar products
UNO Series
Exits
Edge Lit
HXS
Housing
Die-Cast Aluminum
Battery
NiCad
Power
1.9W (AC only) | 2.2-2.5W (battery)
UNO Series
Exits
Edge Lit
HXS
Housing
Die-Cast Aluminum
Battery
NiCad
Power
1.9W (AC only) | 2.2-2.5W (battery)
LSA Series
Exits
Steel
LSA
Housing
Steel
Battery
AC Only
Power
2.5W (120V) | 2.7W (277V)
LSA Series
Exits
Steel
LSA
Housing
Steel
Battery
AC Only
Power
2.5W (120V) | 2.7W (277V)
E-PFX
Thermo Plastic Edge Lit
Overview
Edge lit exit sign with an injection-molded, engineered grade, 5VA flame retardant, high impact thermoplastic housing in silver, black or white. Illuminated by high-intensity red or green LEDs meeting UL uniformity requirements. Available AC only (E-PFXAC) or with sealed NiCad battery backup (E-PFXSP) giving a minimum of 90 minutes emergency operation. Thermoplastic canopy included for top, end or back mount.
Specifications
Mounting Type
Universal (wall, ceiling, end)
Housing Spec
Injection-molded 5VA flame retardant thermoplastic
Power
3.8W (277V)
Battery Spec
NiCad or AC Only
Compliance
UL 924 | NFPA 101 | NEC | UL damp location
Phase
None
Features
Standard Features
Universal 120/277V field selectable input | Engineered grade thermoplastic housing | Low profile housing | Long life LED lamps | Red or green letters | Stick on chevron arrows | Single or double face | 90 minutes emergency (battery models) | AC lockout | Brownout protection | Momentary test switch | UL damp location 0C to 50C
Available Options
White housing (W) | Black housing (B) | Clear panel single (1C) | White panel single or double (1W, 2W) | Mylar panel single or double (1M, 2M) | Self diagnostic, battery models (E) | Dual circuit, AC only models (2CK) | Special wording (SW)
E-PFX
Contact us to get a quote about this product
Features
Thermoplastic
Housing
Single or Double
Faces
NiCad or AC Only
Battery
120/277 VAC
Voltage
Warranty
1yr entire unit | 7yr battery pro-rata
