E-MCX
Commercial Grade Thermoplastic LED
Overview

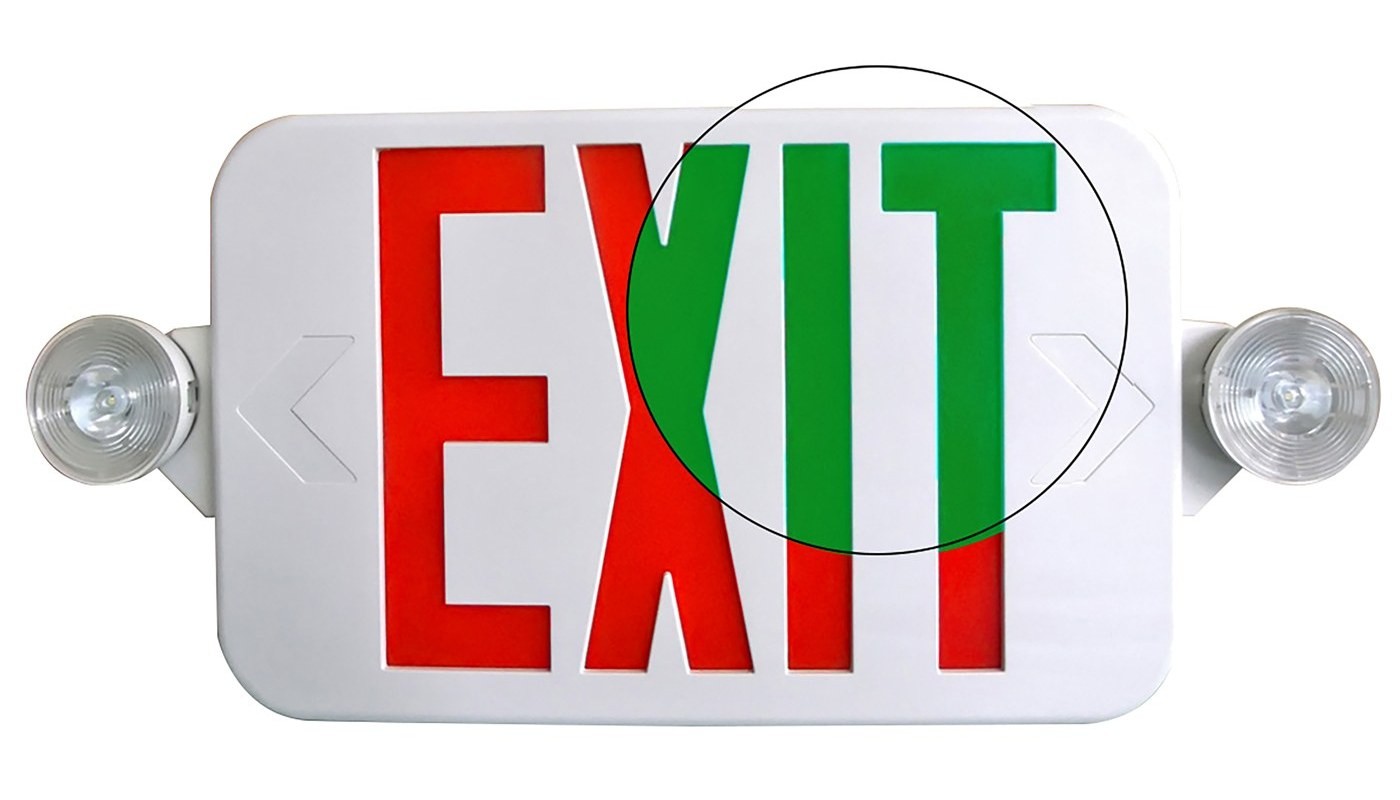

Commercial grade thermoplastic LED exit and emergency combination unit. The housing is injection-molded, high impact, UV-stabilized UL94 V-0 thermoplastic with snap together construction and fully adjustable glare free LED heads. Red or green letters, single face or universal, white housing with black optional. Provides 90 minutes of emergency illumination.
Specifications
Mounting Type
Universal (wall, end, ceiling)
Housing Spec
UL94 V-0 thermoplastic, UV-stabilized
Power
5.0W maximum
Compliance
UL 924 | UL damp location | NFPA 101 | NEC
Phase
None
Features
Standard Features
Universal 120/277V field selectable input | UL94 V-0 thermoplastic | Snap together construction | Adjustable glare free LED heads | Snap-in chevron arrows | Universal back or ceiling mounting | 90 minutes emergency illumination | Solid state charger | Low battery voltage disconnect | Brownout protection | Momentary test switch
Available Options
Self diagnostics (E) | Remote capacity 3.4W (RC) | Green letters (G) | Black housing (B)
E-MCX
Contact us to get a quote about this product
Features
Thermoplastic
Housing
Single or Universal, adjustable LED heads
Faces
None
Battery
120/277 VAC
Voltage
Warranty
1yr entire unit | 5yr battery pro-rata
