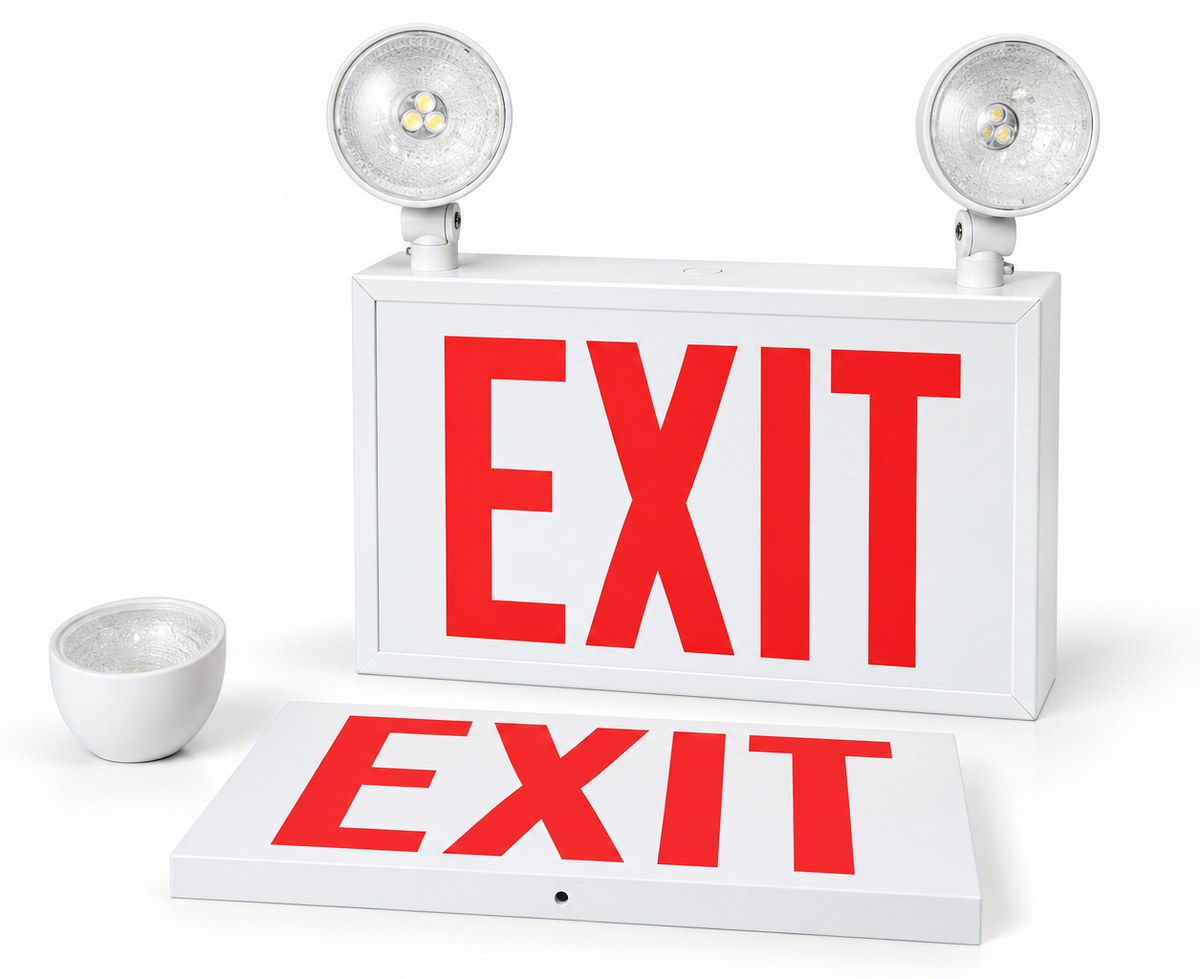

E-LCU
1 or 2 Face Exit Combination w/Heads Self Powered NiCad Battery LED Lamps
Overview
Slim line, one-piece steel exit combination with two or three high-intensity LED lamp heads. Single housing construction is slimmer and lighter than typical two-piece units, improving looks and making installation easier. 8 inch red letters lit by Piranha LEDs, a self-powered NiCad battery for a minimum 90 minutes of emergency light, and a prewired chassis for a 2-minute installation.
Specifications
Mounting Type
Universal J-box (ceiling mounting kit optional)
Housing Spec
20-gauge die-formed steel, one-piece frame, powder coat
Power
3.6W LED heads
Battery Spec
NiCad
Compliance
UL 924 | NFPA 101 | NEC | OSHA | NYC approved (MEA/BEC) | NYC Local Laws 16 & 41
Phase
None
Features
Standard Features
One-piece 20-gauge steel housing | 8 inch red letters | Piranha LED exit | 2 or 3 adjustable LED heads | UL 924 rotation stops | Knockouts to relocate heads to the side | Universal J-box back plate | Line latching, brownout protection | Test switch and AC-on indicator | Prewired 2-minute install
Available Options
Black housing, black stencil (BB) | Black housing, aluminum stencil (BS) | Ceiling mounting kit (CM) | Side mounted heads (SMH) | Cord/plug set | Mounting shelf | Wire guard (GX72)
E-LCU
Contact us to get a quote about this product
Features
Steel
Housing
1 or 2 Face, 2 or 3 LED Heads
Faces
NiCad
Battery
120/277 VAC
Voltage
Warranty
5yr battery pro-rata | 25yr LED lamps | 5yr charger board
