E-FX
Surface Edge Lit
Overview

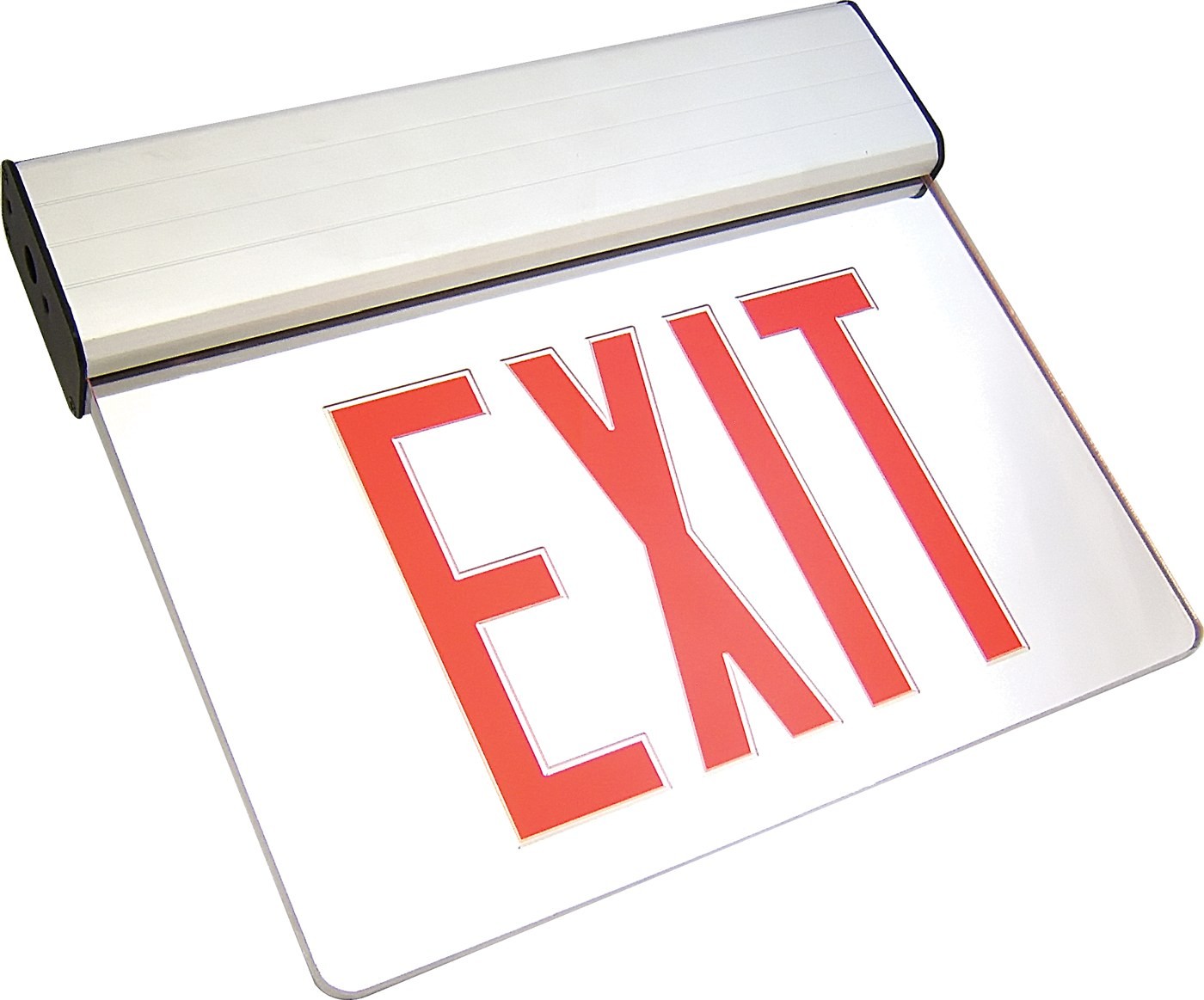

Surface edge lit exit sign in a premium-grade, low profile extruded aluminum housing, also available in black or white. Illuminated by high intensity red or green LEDs. Aluminum canopy included for top, end or back mount. Available as AC only or with a sealed NiCad battery backup giving a minimum of 90 minutes of emergency operation.
Specifications
Mounting Type
Universal (wall, ceiling, end)
Housing Spec
Premium-grade extruded aluminum (black or white powder coat available)
Power
3.8W at 120V, 4.2W at 277V
Battery Spec
NiCad
Compliance
UL 924 | NFPA 101
Phase
None
Features
Standard Features
Universal 120/277V field selectable input | Extruded aluminum housing | Low profile | Long life LEDs | Low power consumption | Red or green letters | Stick-on chevron arrows | Single or double face | 90-min NiCad battery (emergency models) | Low battery voltage disconnect | AC lockout | Brownout protection | AC ready LED indicator | UL listed damp locations (emergency models)
Available Options
Two circuit (2CK) | Self diagnostic (E) | Assembled in the USA (USA) | All white (W) | All black (B) | All aluminum (A) | Panels: single clear (1C), single white (1W), double white (2W), single mylar (1M), double mylar (2M)
E-FX
Contact us to get a quote about this product
Features
Extruded Aluminum
Housing
Single or Double
Faces
NiCad
Battery
120/277 VAC
Voltage
Warranty
1yr entire unit | 7yr battery pro-rata
