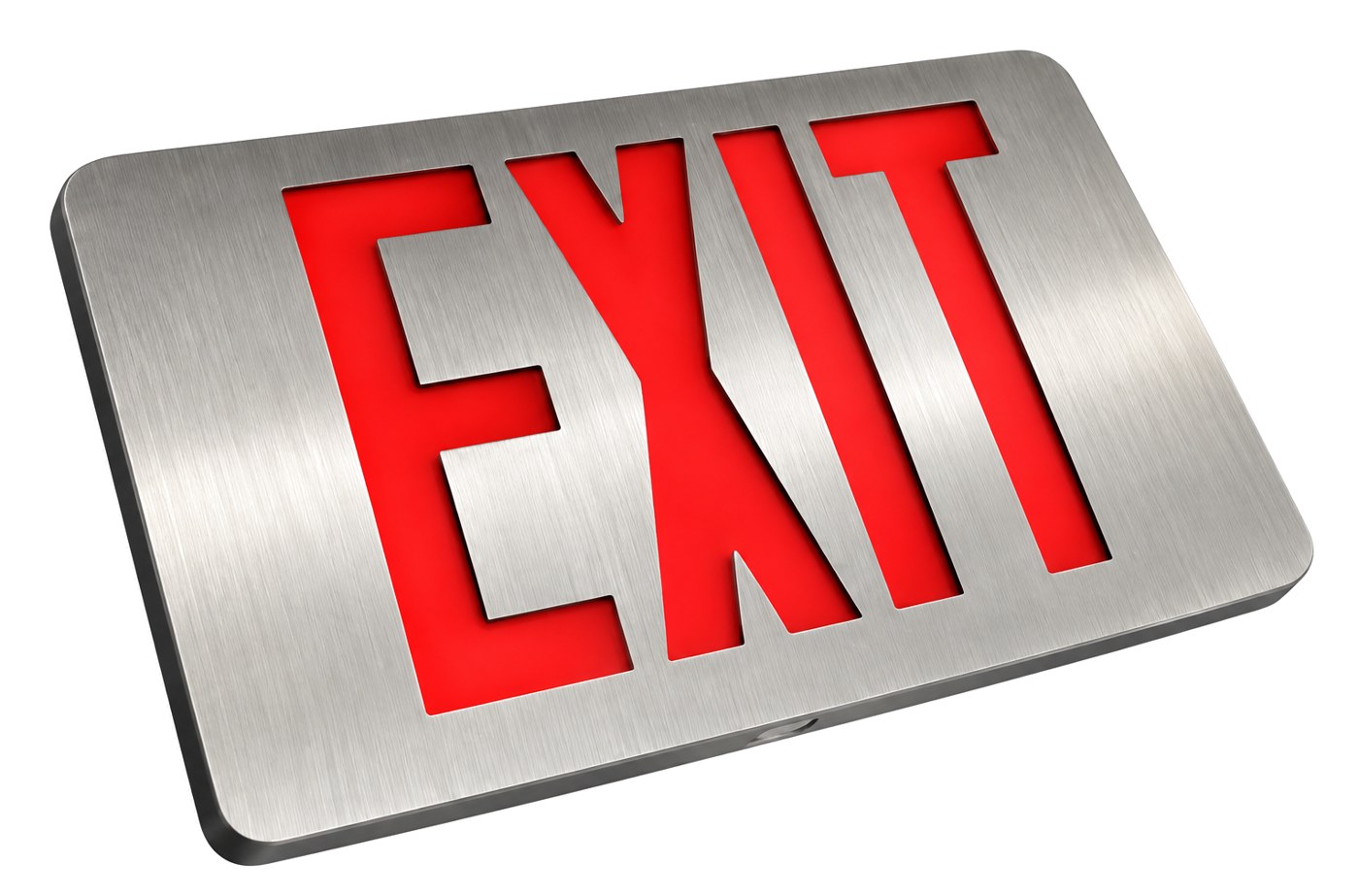

E-DXT
Commercial Grade Thin Cast Aluminum

Overview
Commercial grade exit sign with a specification-grade, low profile thin die-cast aluminum housing, also available in black or white powder coat. Illuminated by high-intensity red or green LEDs meeting UL uniformity requirements, drawing 1.0 watts at 120/277 volts. Available AC only or with sealed NiCad battery backup giving a minimum of 90 minutes emergency operation. Snap together construction with an aluminum canopy for end or ceiling mount.
Explore similar products

UNO Series
Exits
Edge Lit
HXS
Housing
Die-Cast Aluminum
Battery
NiCad
Power
1.9W (AC only) | 2.2-2.5W (battery)

UNO Series
Exits
Edge Lit
HXS
Housing
Die-Cast Aluminum
Battery
NiCad
Power
1.9W (AC only) | 2.2-2.5W (battery)

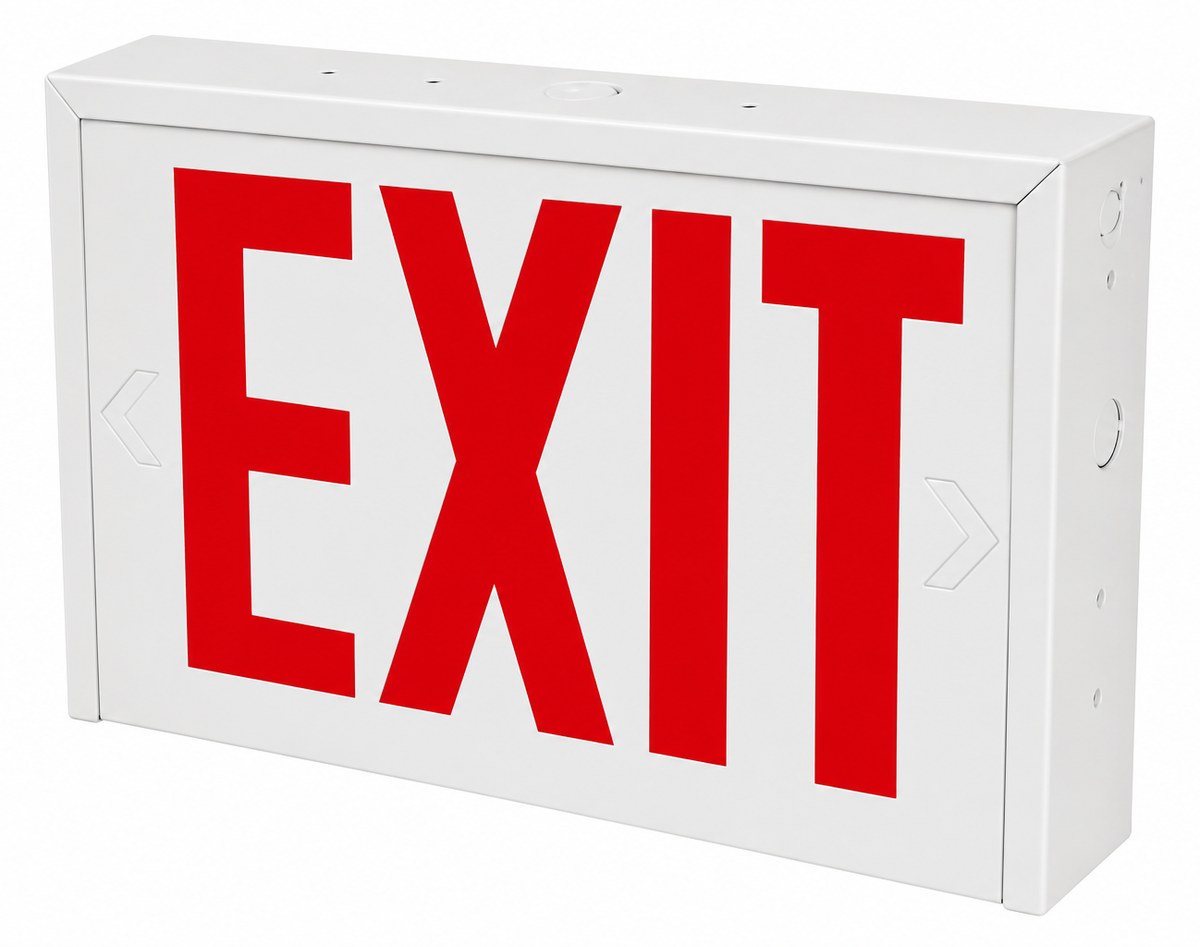

LSA Series
Exits
Steel
LSA
Housing
Steel
Battery
AC Only
Power
2.5W (120V) | 2.7W (277V)

LSA Series
Exits
Steel
LSA
Housing
Steel
Battery
AC Only
Power
2.5W (120V) | 2.7W (277V)
E-DXT
Commercial Grade Thin Cast Aluminum


Overview
Commercial grade exit sign with a specification-grade, low profile thin die-cast aluminum housing, also available in black or white powder coat. Illuminated by high-intensity red or green LEDs meeting UL uniformity requirements, drawing 1.0 watts at 120/277 volts. Available AC only or with sealed NiCad battery backup giving a minimum of 90 minutes emergency operation. Snap together construction with an aluminum canopy for end or ceiling mount.
Specifications
Mounting Type
Ceiling or End (wall bracket on single face only)
Housing Spec
Low profile thin die-cast aluminum
Power
1.0W (120/277V)
Battery Spec
NiCad or AC Only
Compliance
UL 924 | UL damp location | NFPA 101 | NEC
Phase
None
Features
Standard Features
Universal 120/277V field selectable input | Thin die-cast aluminum | Snap together construction | Long life LED lamps | Red or green letters | Knock out chevron arrows | Single or double face | 90 minutes emergency (battery models) | AC lockout | Brownout protection | Momentary test switch | Damp location listed
Available Options
All white housing (W) | All black housing (B) | All aluminum housing (A)
E-DXT
Contact us to get a quote about this product
Features
Die-Cast Aluminum
Housing
Single or Double
Faces
NiCad or AC Only
Battery
120/277 VAC
Voltage
Warranty
1yr entire unit | 5yr battery pro-rata
