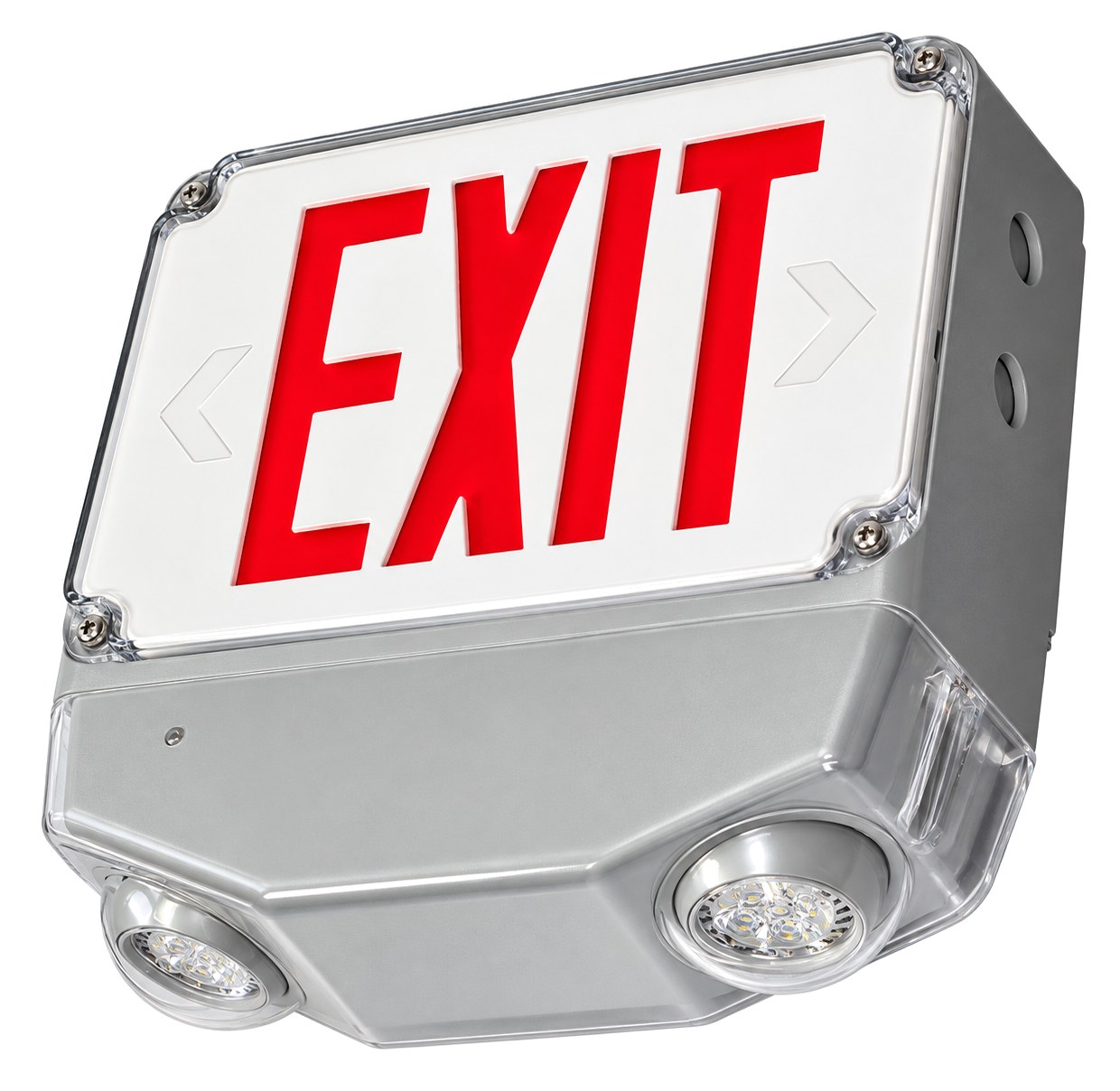

E-CWL
Wet-Location Combo with LED Heads
Overview
Wet-location combination LED exit sign with two long-life ultra-white LED emergency heads. Housing is injection-molded, engineering-grade 5VA flame-retardant thermoplastic with a UV-stabilized clear lens and silicone gasket, in white, black or gray. UL924 listed for cold and wet locations, with a 6V NiCad battery giving a minimum of 90 minutes of emergency operation.
Specifications
Mounting Type
End or ceiling (die-cast canopy)
Housing Spec
5VA flame-retardant thermoplastic, silicone gasket
Power
Exit 4.9W | 3.6W per head
Battery Spec
NiCad
Compliance
UL 924 | UL cold/wet location (-20°C to 50°C) | NFPA 101 | NEC
Phase
None
Features
Standard Features
Exit plus two LED heads | Red or green letters | Universal 120/277V field-selectable input | 6V NiCad, 90-minute backup | Cold/wet location listed | Silicone gasket | Snap-out chevrons | Bi-color LED indicator | Brownout protection | Momentary test switch
Available Options
Self-diagnostic (E) | Cold weather heater (CW) | Tamper proof (TP) | Remote capacity 7.2W (RC) | Green letters (G) | Black housing (B) | Gray housing (G)
E-CWL
Contact us to get a quote about this product
Features
Thermoplastic
Housing
Single or Double, 2 LED Heads
Faces
NiCad
Battery
120/277 VAC
Voltage
Warranty
5yr electronics and housing | 5yr battery pro-rata
