E-CEM-HL
LED Hazardous Location Emergency Unit

Overview

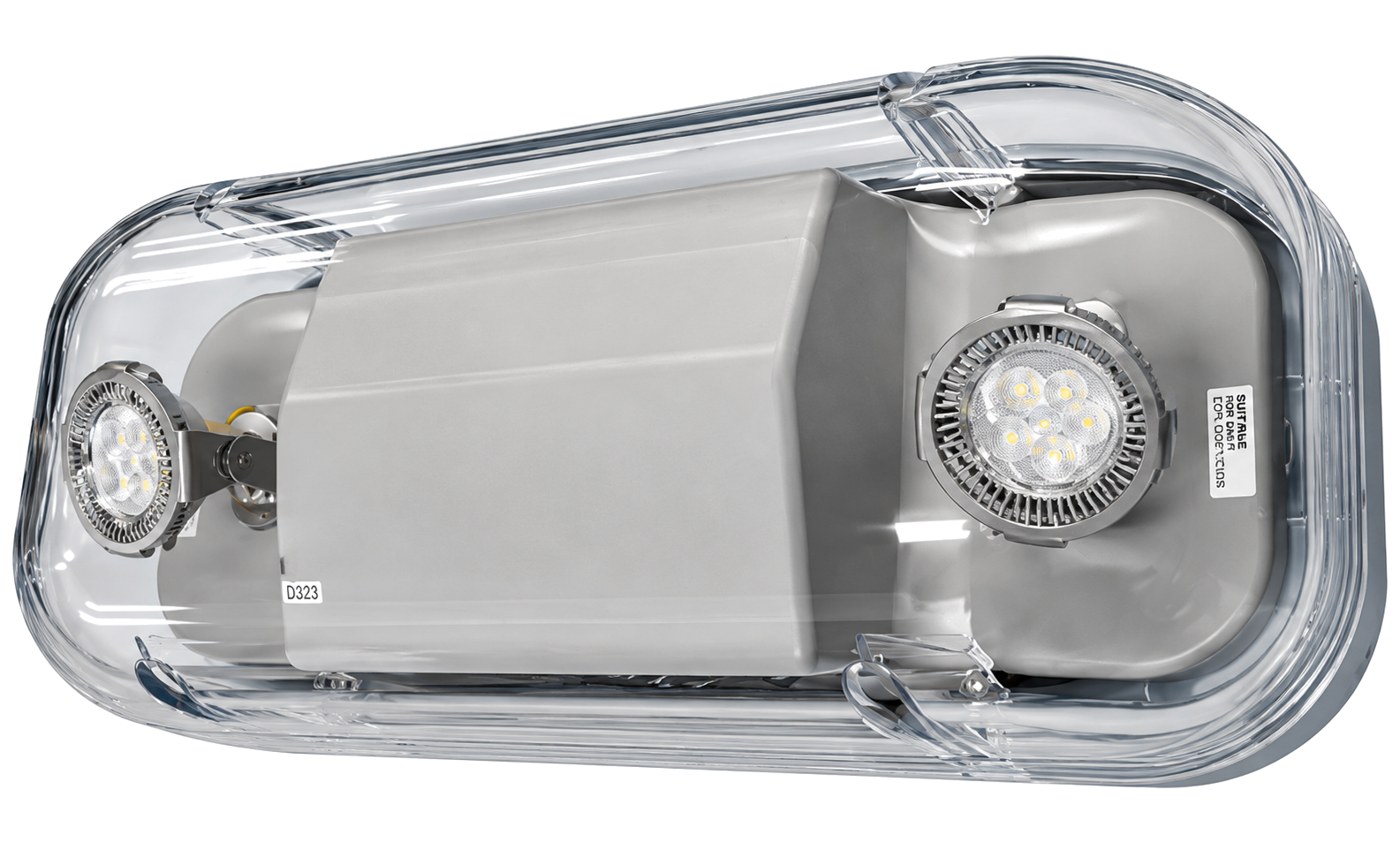

LED emergency unit for hazardous locations, rated for Class I, Division 2, Groups A, B, C and D. Two fully adjustable 3.3-watt MR16 base LED lamp heads, with 7.8W of remote capacity (6V/12V DC output) standard. Fiberglass-reinforced polycarbonate housing in gray, IP66 rated and UL listed for wet locations. A 6V/12V NiCad battery gives a minimum of 90 minutes of emergency illumination and recharges within 24 hours.
Explore similar products

NEMA4X Exit Series
Wet Location / Industrial Products
NEMA 4X
4X
Housing
Fiberglass
Battery
NiCad or AC Only
Power

NEMA4X Exit Series
Wet Location / Industrial Products
NEMA 4X
4X
Housing
Fiberglass
Battery
NiCad or AC Only
Power

NEMA EX Series
Wet Location / Industrial Products
NEMA 4X
EX
Housing
Fiberglass
Battery
Lead Calcium
Power
6 or 12V, 15-72W

NEMA EX Series
Wet Location / Industrial Products
NEMA 4X
EX
Housing
Fiberglass
Battery
Lead Calcium
Power
6 or 12V, 15-72W
E-CEM-HL
LED Hazardous Location Emergency Unit


Overview
LED emergency unit for hazardous locations, rated for Class I, Division 2, Groups A, B, C and D. Two fully adjustable 3.3-watt MR16 base LED lamp heads, with 7.8W of remote capacity (6V/12V DC output) standard. Fiberglass-reinforced polycarbonate housing in gray, IP66 rated and UL listed for wet locations. A 6V/12V NiCad battery gives a minimum of 90 minutes of emergency illumination and recharges within 24 hours.
Specifications
Mounting Type
Surface Wall, Conduit or Pendant
Housing Spec
Fiberglass-reinforced polycarbonate, gray
Power
6 or 12V, 15W
Battery Spec
NiCad
Compliance
UL 924 | NFPA 101 | NEC | OSHA | IP66 | Class I Div 2 Groups A, B, C and D | UL wet location
Phase
None
Capacity
15W
Features
Standard Features
Class I Div 2 Groups A, B, C and D | Two 3.3W MR16 LED heads | 7.8W remote capacity | Dual 120/277V | 6V/12V NiCad battery | 90-min emergency illumination | 24hr recharge | IP66, wet location listed | Bi-color battery indicator | Magnetic test switch | Pre-installed conduit hub
Available Options
Self-diagnostic (E) | Cold weather (CW) | Tamper proof (TP)
E-CEM-HL
Contact us to get a quote about this product
Features
Polycarbonate
Housing
2 MR16 LED Heads
Faces
NiCad
Battery
120/277 VAC
Voltage
Warranty
5yr electronics and housing | 5yr battery pro-rata
