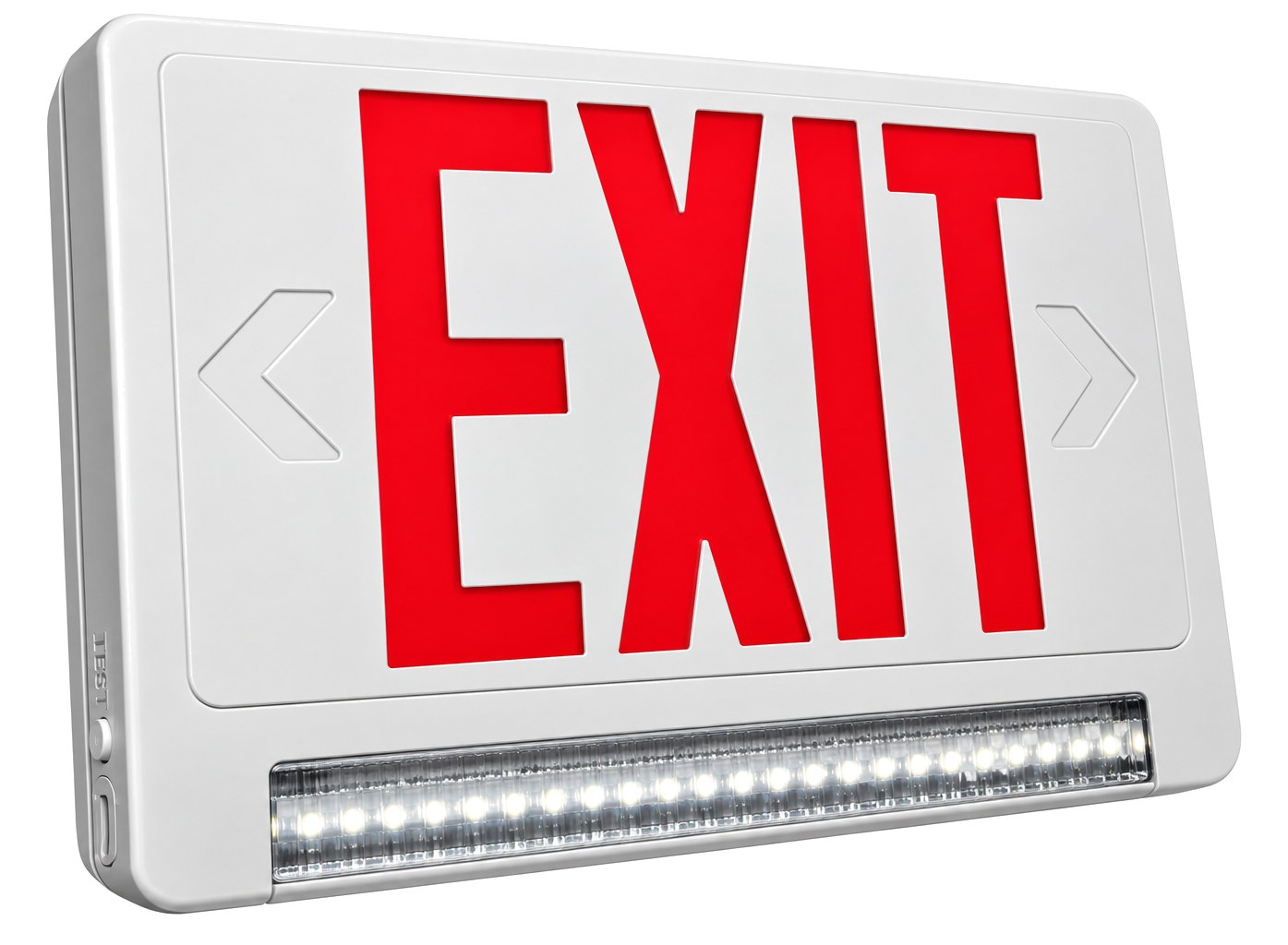

E-CCXLB
LED Lite Bar Combination Unit


Overview
LED exit and emergency combination unit with a 4.5 watt high intensity white LED Lite Bar. Injection molded, high impact, 5VA flame retardant thermoplastic housing with an EZ snap mount canopy. Red or green LED letters with snap-out chevron arrows; universal models come with 2 stencil faces and a blank plate. A sealed NiCad battery provides a minimum of 90 minutes of emergency illumination, with 3 watts of remote capacity standard.
Specifications
Mounting Type
Universal (wall, end, ceiling)
Housing Spec
5VA flame retardant thermoplastic
Power
4.5W (120V) | 5W (277V)
Battery Spec
NiCad
Compliance
UL 924 | NFPA 101 | NEC | UL damp location
Phase
None
Features
Standard Features
5VA thermoplastic housing | 4.5W white LED Lite Bar | Red or green LED letters | Snap-out chevrons | EZ snap mount canopy | Universal 120/277V | Sealed NiCad battery | 90-min emergency illumination | 3W remote capacity | AC lockout and brownout protection | Test switch
Available Options
Self-diagnostics (E) | High lumen 1.5 watt heads (HL) | White or black housing (W, B)
E-CCXLB
Contact us to get a quote about this product
Features
Thermoplastic
Housing
Single or Universal
Faces
NiCad
Battery
120/277 VAC
Voltage
Warranty
1yr entire unit | 5yr battery pro-rata
