E-CCXIE
Incandescent Combination Unit
Overview

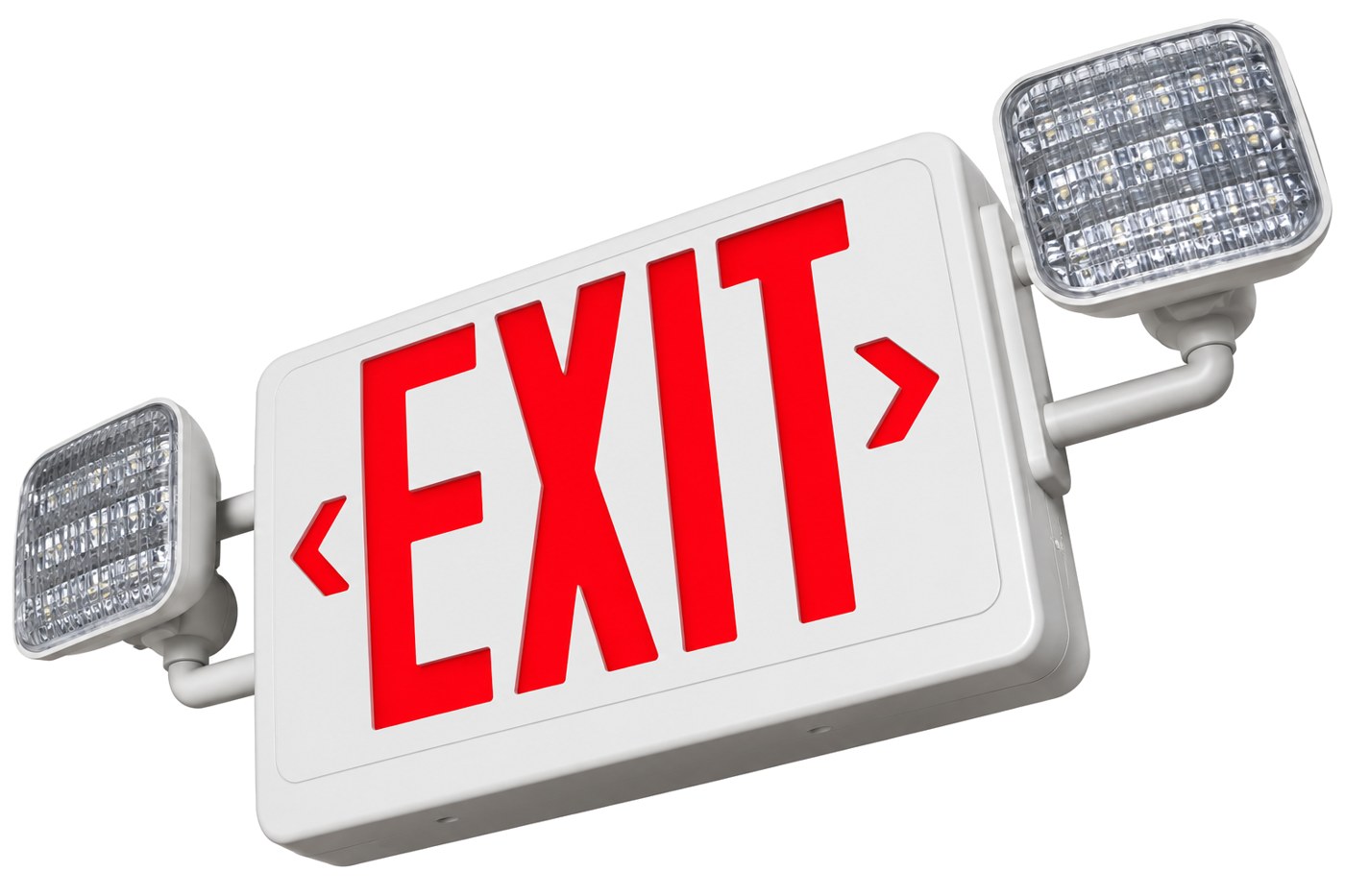

Exit and emergency light combination unit in an injection molded, high impact 5VA flame retardant thermoplastic housing. LED exit face in red or green, with two fully adjustable, glare-free lighting heads using 5.6 watt lamps as standard. A 9.6 volt sealed NiCad battery provides a minimum of 90 minutes of emergency operation. Universal wall, end or ceiling mounting, with remote capacity (3 watts) standard.
Explore similar products
LC8 Series
Combo Units
Steel
LC8
Housing
Steel
Battery
Lead Calcium
Power
2.5W exit + 5.4W heads
LC8 Series
Combo Units
Steel
LC8
Housing
Steel
Battery
Lead Calcium
Power
2.5W exit + 5.4W heads
LPCX Series
Combo Units
Thermoplastic
LPCX
Housing
Thermoplastic
Battery
Lead Calcium
Power
Exit 2.5W | 5.4W heads standard (higher available) | 4.4-6.7W charge mode
LPCX Series
Combo Units
Thermoplastic
LPCX
Housing
Thermoplastic
Battery
Lead Calcium
Power
Exit 2.5W | 5.4W heads standard (higher available) | 4.4-6.7W charge mode
E-CCXIE
Incandescent Combination Unit
Overview
Exit and emergency light combination unit in an injection molded, high impact 5VA flame retardant thermoplastic housing. LED exit face in red or green, with two fully adjustable, glare-free lighting heads using 5.6 watt lamps as standard. A 9.6 volt sealed NiCad battery provides a minimum of 90 minutes of emergency operation. Universal wall, end or ceiling mounting, with remote capacity (3 watts) standard.
Specifications
Mounting Type
Universal (wall, end, ceiling)
Housing Spec
Injection molded 5VA flame retardant thermoplastic
Power
3.7W at 120V, 3.8W at 277V
Battery Spec
NiCad
Compliance
UL 924 | UL damp location | NEC | NFPA 101
Phase
None
Features
Standard Features
Universal 120/277V input | 5VA flame retardant thermoplastic | EZ snap mount canopy | LED exit face | 2 adjustable glare-free heads, 5.6W lamps | Chrome plated metalized reflector | Snap-in chevrons | Universal models include 2 stencil faces and blank plate | Solid state charger | Low battery voltage disconnect | AC lockout and brownout protection | AC ready LED indicator | Test switch | 90-min NiCad battery | Remote capacity (3 watts) standard | 0 to 40C operating range
Available Options
Self-diagnostics (E) | High lumen 1.5 watt heads (HL) | Black housing (B)
E-CCXIE
Contact us to get a quote about this product
Features
Thermoplastic
Housing
Single or Universal, 2 adjustable heads (5.6W lamps)
Faces
NiCad
Battery
120/277 VAC
Voltage
Warranty
1yr entire unit | 5yr battery pro-rata
