E-CCKX
Combination Unit
Overview

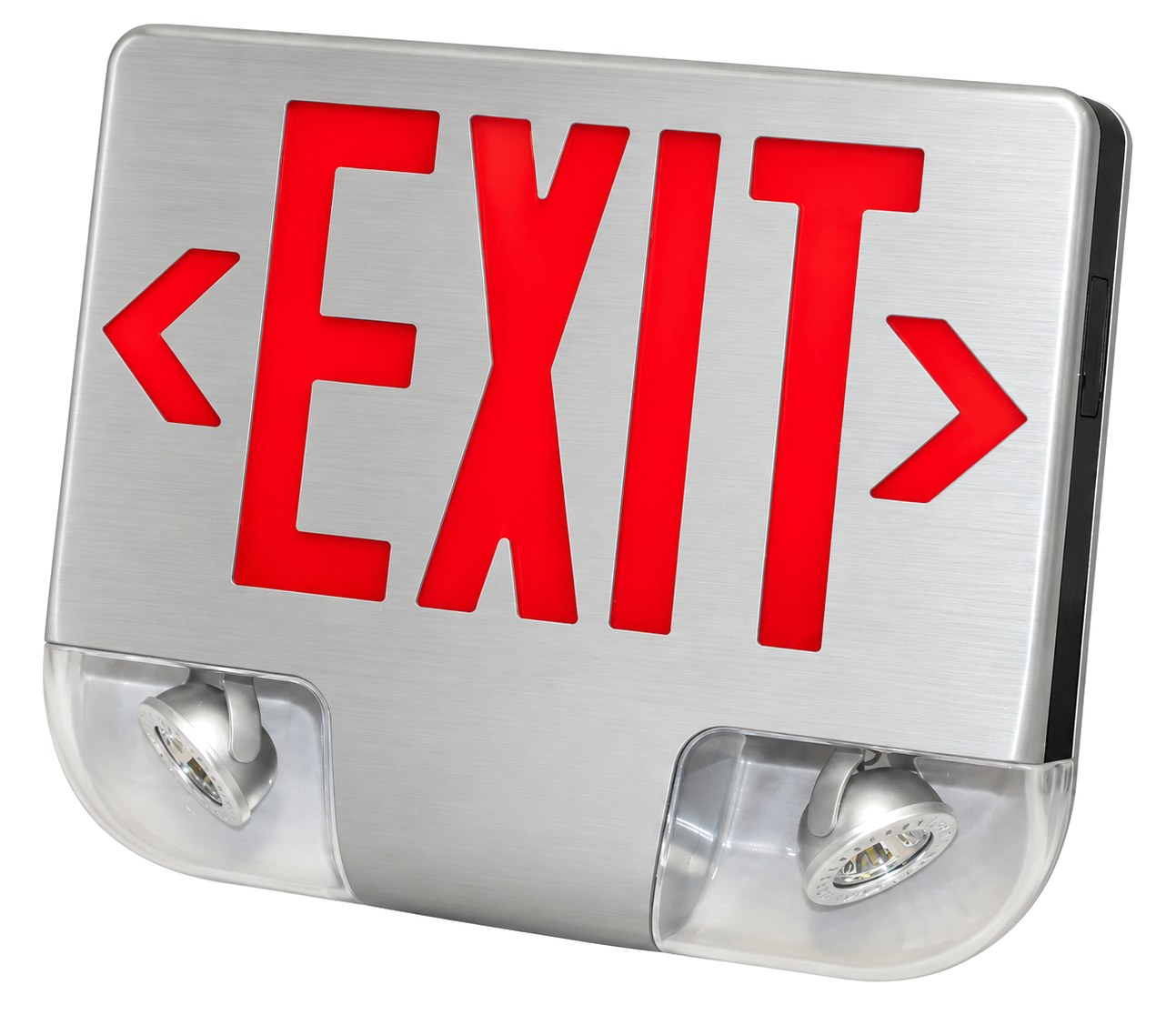

LED exit and emergency light combination unit with two side mounted heads. The exit face uses high intensity red or green LEDs and the heads use ultra bright white LEDs at 3 watts per head. Provides a minimum of 90 minutes of emergency operation. Aluminum canopy included for top or end mount, with a universal knockout pattern on the back plate for wall mount.
Explore similar products
LC8 Series
Combo Units
Steel
LC8
Housing
Steel
Battery
Lead Calcium
Power
2.5W exit + 5.4W heads
LC8 Series
Combo Units
Steel
LC8
Housing
Steel
Battery
Lead Calcium
Power
2.5W exit + 5.4W heads
LPCX Series
Combo Units
Thermoplastic
LPCX
Housing
Thermoplastic
Battery
Lead Calcium
Power
Exit 2.5W | 5.4W heads standard (higher available) | 4.4-6.7W charge mode
LPCX Series
Combo Units
Thermoplastic
LPCX
Housing
Thermoplastic
Battery
Lead Calcium
Power
Exit 2.5W | 5.4W heads standard (higher available) | 4.4-6.7W charge mode
E-CCKX
Combination Unit
Overview
LED exit and emergency light combination unit with two side mounted heads. The exit face uses high intensity red or green LEDs and the heads use ultra bright white LEDs at 3 watts per head. Provides a minimum of 90 minutes of emergency operation. Aluminum canopy included for top or end mount, with a universal knockout pattern on the back plate for wall mount.
Specifications
Mounting Type
Universal (back, ceiling, end)
Power
4.6W (120V) | 4.8W (277V)
Compliance
UL 924 | UL damp location | NEC | NFPA 101 | BAA | TAA
Phase
None
Features
Standard Features
Universal 120/277V field selectable input | Long life LED lamps | Red or green letters | Snap-out chevron arrows | Two side mounted heads | 90 minutes emergency | Solid state charger | Low battery voltage disconnect | AC lockout | Brownout protection | Momentary test switch | Optional self diagnostics
Available Options
Black housing (B) | Aluminum housing (A) | White, black or aluminum face plate (W, B, A) | Remote capacity 3 watts (RC)
E-CCKX
Contact us to get a quote about this product
Features
Extruded Aluminum
Housing
Exit (Single or Universal) + 2 Heads
Faces
None
Battery
120/277 VAC
Voltage
Warranty
1yr entire unit | 5yr battery pro-rata
