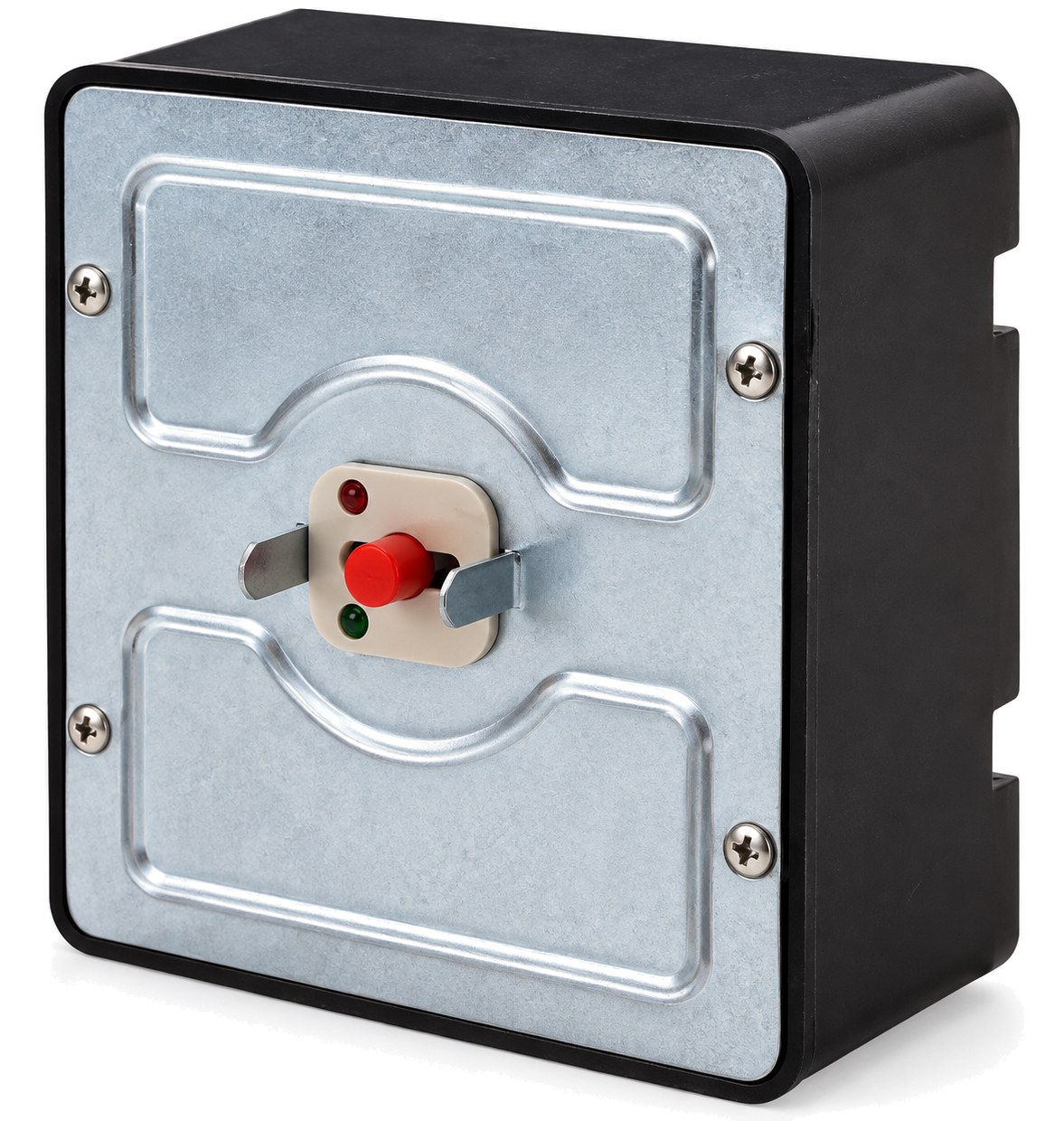

E-CBR-PM
Plenum Mount Switch Bypass Module
Overview
Switch bypass control module that lets locally switched lighting fixtures be used for emergency operation. It must be used with either a generator or an inverter system. During a utility power failure, fixtures controlled by the module illuminate regardless of the local switch position. Approved for plenum mounting, with a 20 amp ballast load rating, in 120 or 277 volt models.
Explore similar products

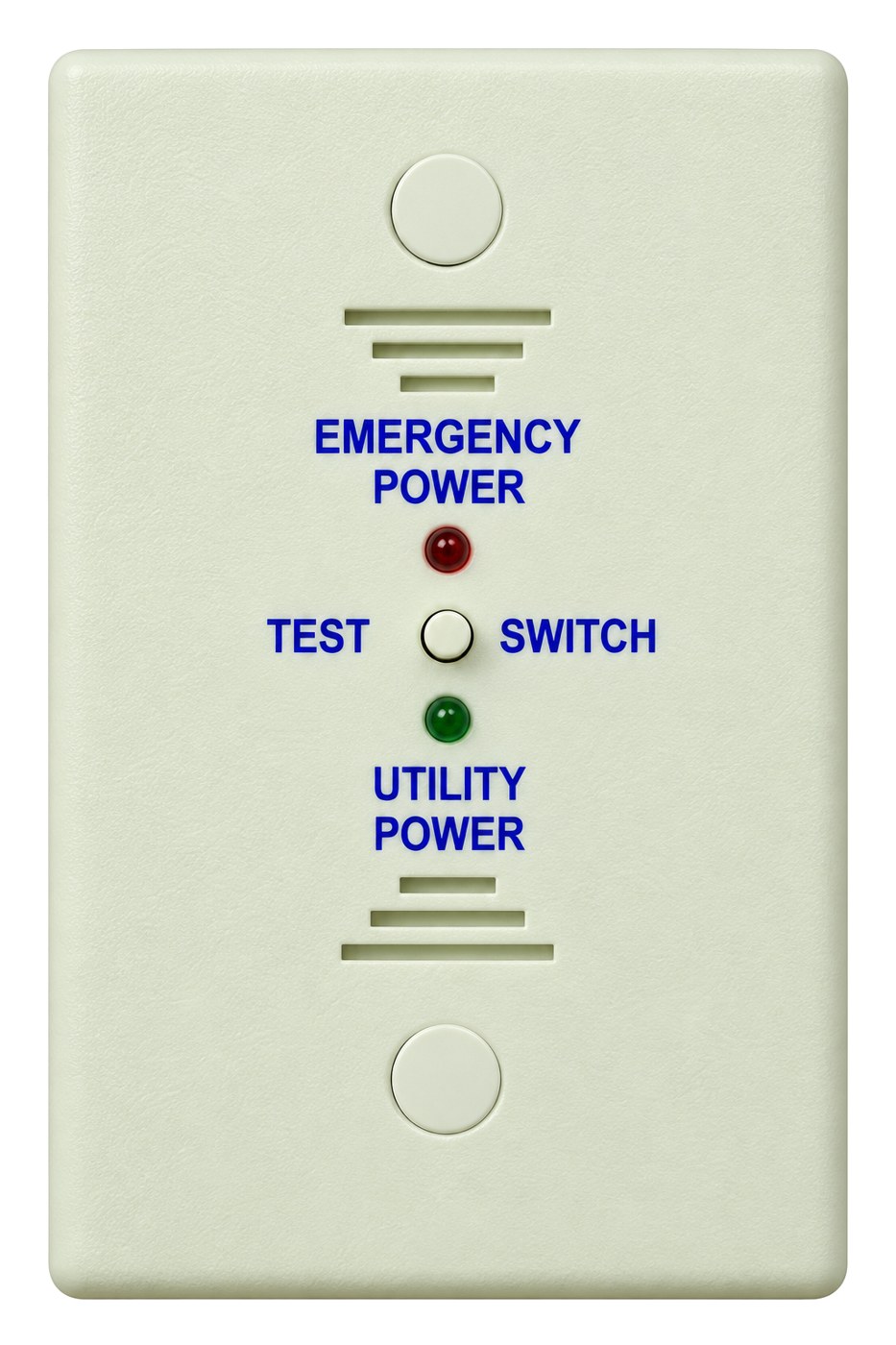

E-CBR-1-D
Lighting Controls
Low Voltage Dimming Switch
E-CBR-1-D
Housing
N/A
Battery
N/A
Power
E-CBR-1-D
Lighting Controls
Low Voltage Dimming Switch
E-CBR-1-D
Housing
N/A
Battery
N/A
Power

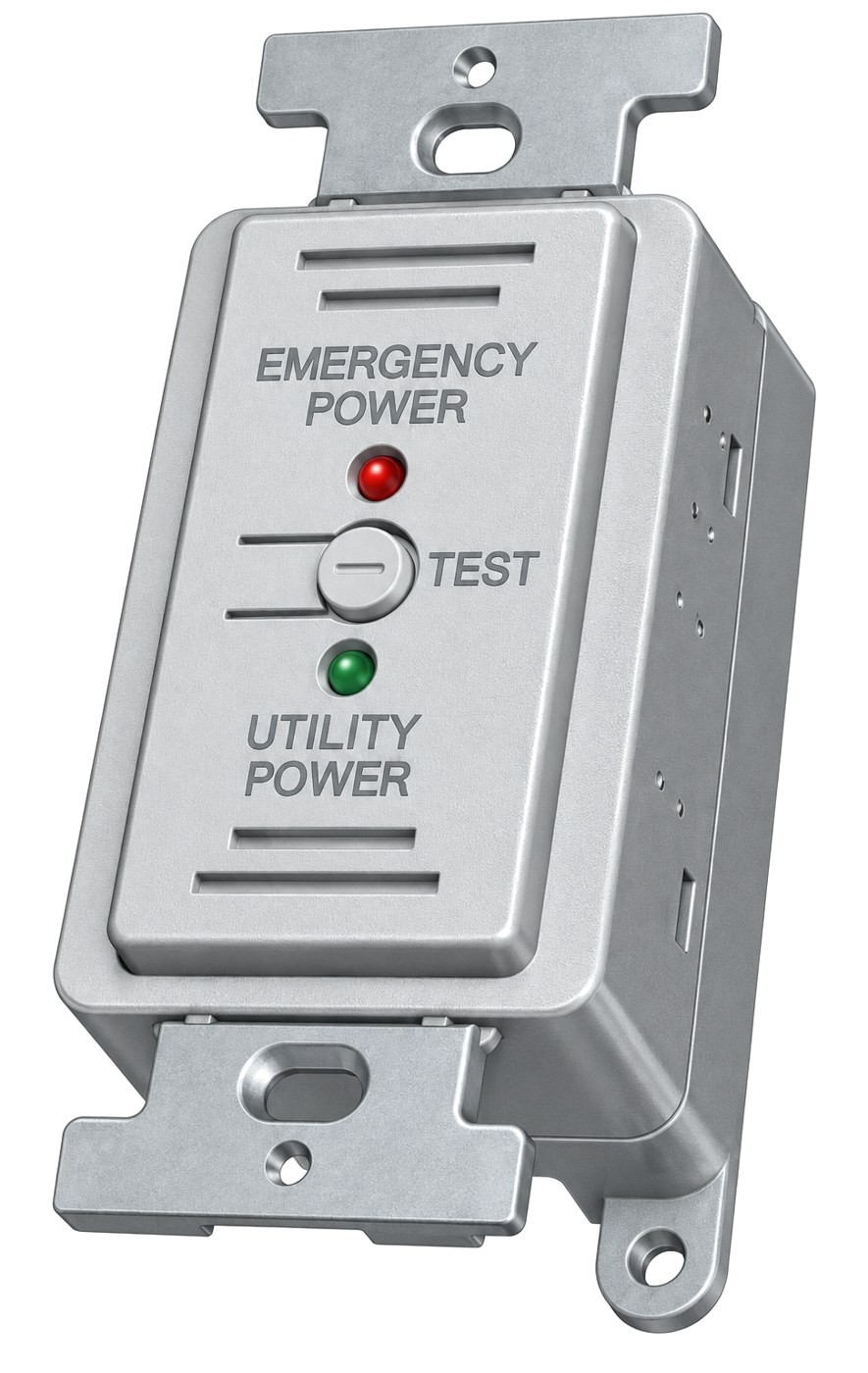

E-CBR-2-D
Lighting Controls
Low Voltage Dimming Switch
E-CBR-2-D
Housing
N/A
Battery
N/A
Power
E-CBR-2-D
Lighting Controls
Low Voltage Dimming Switch
E-CBR-2-D
Housing
N/A
Battery
N/A
Power
E-CBR-PM
Plenum Mount Switch Bypass Module
Overview
Switch bypass control module that lets locally switched lighting fixtures be used for emergency operation. It must be used with either a generator or an inverter system. During a utility power failure, fixtures controlled by the module illuminate regardless of the local switch position. Approved for plenum mounting, with a 20 amp ballast load rating, in 120 or 277 volt models.
Specifications
Mounting Type
Plenum, standard electrical box
Housing Spec
UL94-5VA flame rated, plenum approved
Battery Spec
N/A
Compliance
UL 924 | NFPA 101 | NEC | OSHA | UL94-5VA
Phase
None
Features
Standard Features
Bypasses local switch on power failure | Works with generator or inverter | Compatible with motion detectors and photocells | Plenum mount approved | 20A ballast load rating | 120 or 277V | Surge and short circuit protection | Status indicator LEDs | Momentary test switch | Fits standard electrical boxes
Available Options
120 volts (E-CBR-PM1) | 277 volts (E-CBR-PM2)
E-CBR-PM
Contact us to get a quote about this product
Features
N/A
Housing
N/A
Faces
N/A
Battery
None
Voltage
Warranty
5yr replacement
