E-CBR-2-D
Low Voltage Dimming Switch Bypass Module

Overview
Switch bypass control module that lets low voltage (0 to 10 volt) dimmed lighting fixtures be used for emergency operation, in conjunction with a generator or an inverter system. In normal operation the local switch dims or turns the fixtures on and off; on a utility power failure the controlled fixtures go to full output regardless of their state. Removes the need for night light circuits. Rated for a 20 amp ballast load and installs in standard electrical boxes.
Explore similar products

E-CBR-1-D
Lighting Controls
Low Voltage Dimming Switch
E-CBR-1-D
Housing
N/A
Battery
N/A
Power

E-CBR-1-D
Lighting Controls
Low Voltage Dimming Switch
E-CBR-1-D
Housing
N/A
Battery
N/A
Power

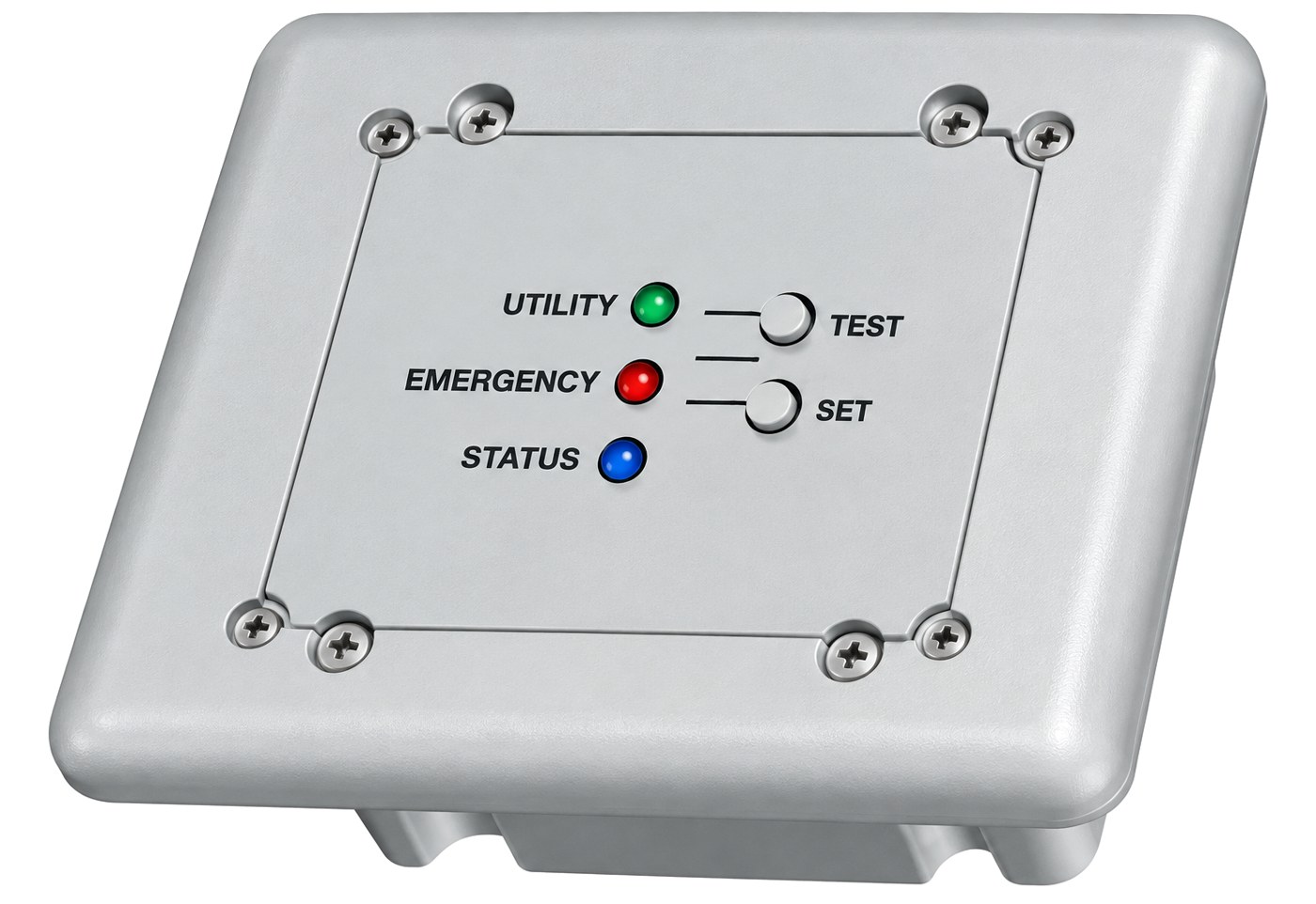

E-CBR-D-F-ATS
Lighting Controls
Dimming Switch
E-CBR-D-F-ATS
Housing
N/A
Battery
N/A
Power
120-277V, 16A load | 1920W (120V) / 4432W (277V) incandescent

E-CBR-D-F-ATS
Lighting Controls
Dimming Switch
E-CBR-D-F-ATS
Housing
N/A
Battery
N/A
Power
120-277V, 16A load | 1920W (120V) / 4432W (277V) incandescent
E-CBR-2-D
Low Voltage Dimming Switch Bypass Module


Overview
Switch bypass control module that lets low voltage (0 to 10 volt) dimmed lighting fixtures be used for emergency operation, in conjunction with a generator or an inverter system. In normal operation the local switch dims or turns the fixtures on and off; on a utility power failure the controlled fixtures go to full output regardless of their state. Removes the need for night light circuits. Rated for a 20 amp ballast load and installs in standard electrical boxes.
Specifications
Mounting Type
In-wall or In-ceiling, standard electrical box
Compliance
UL 924 | NFPA 101 | NEC | OSHA | UL94-5VA flame rating
Phase
None
Features
Standard Features
0-10V, DALI and Eco System dimming override | Compatible with motion detectors and photocells | In-wall or in-ceiling | 20 amp ballast load rating | Universal 120 or 277V | Surge and short circuit protection | Power readiness indicators | Momentary test switch
E-CBR-2-D
Contact us to get a quote about this product
Features
N/A
Housing
N/A
Faces
N/A
Battery
None
Voltage
Warranty
5yr replacement
