E-CBL-2CT
Pullout Switch / HVAC Disconnector - Lug Output
Overview

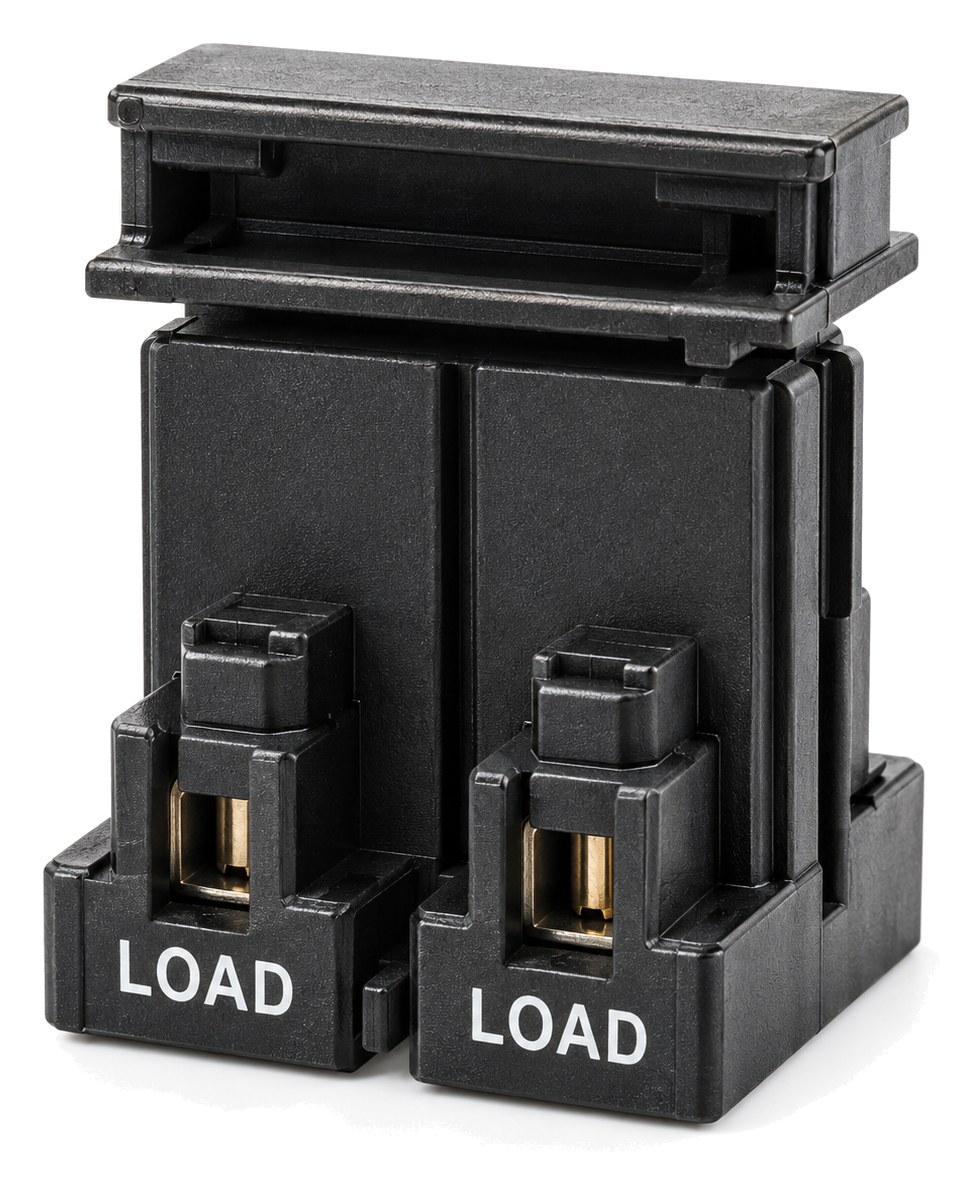

The Encore E-CBL-2CT is a pull-to-disconnect HVAC service switch (pullout disconnector) with screw-lug output. Pulling the insulated block disconnects both LINE and LOAD, providing a positive service disconnect for air-conditioning and heat-pump condensing units and similar HVAC equipment.
Explore similar products

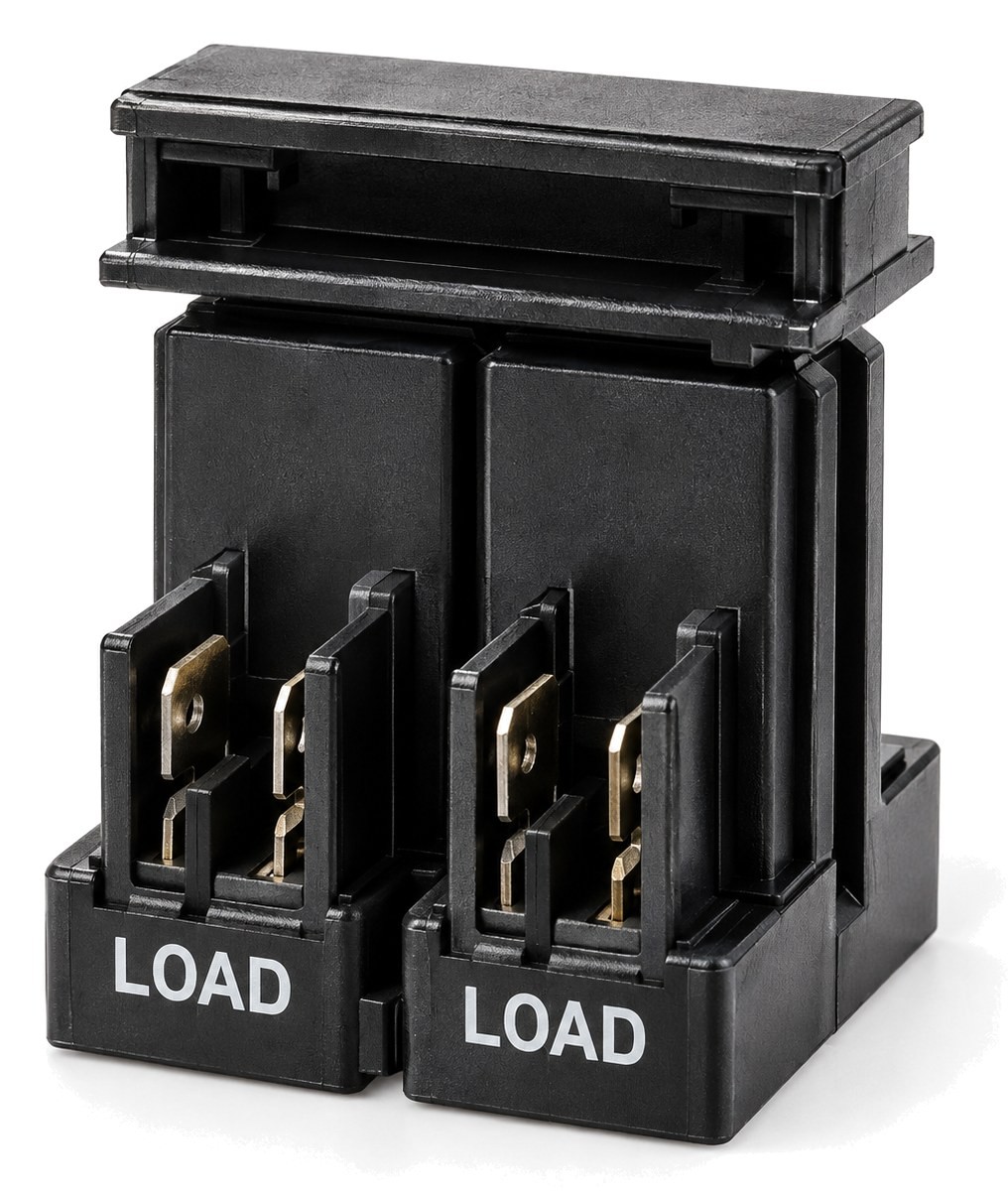

E-CBL-2CQ
Electrical Products
Pullout Switch / HVAC Disconnector Quick-Connect Output
Housing
Thermoplastic
Battery
N/A
Power
240VAC, 60A / 10 HP max
E-CBL-2CQ
Electrical Products
Pullout Switch / HVAC Disconnector Quick-Connect Output
Housing
Thermoplastic
Battery
N/A
Power
240VAC, 60A / 10 HP max

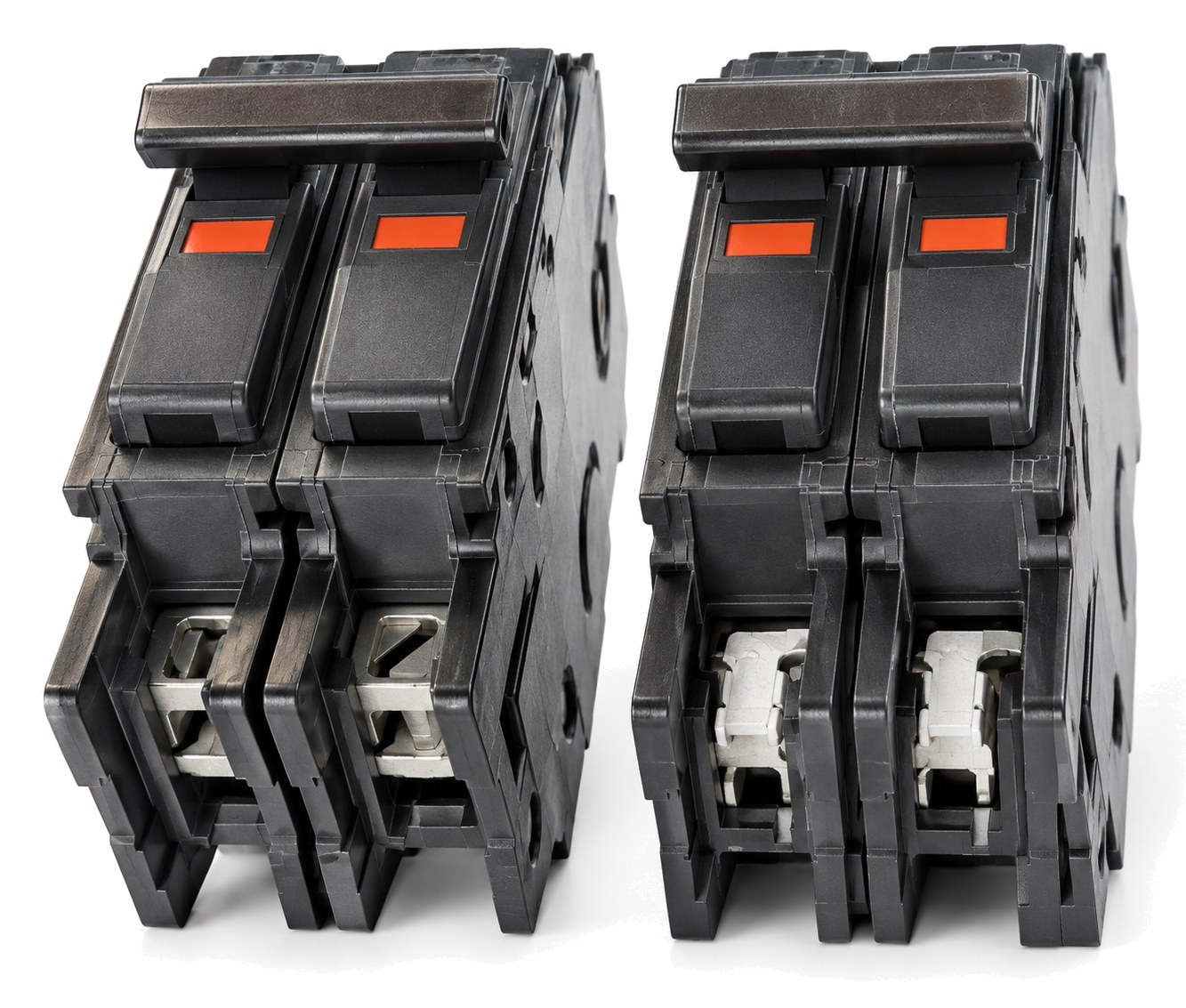

E-CCB260
Electrical Products
Molded-Case Circuit Breaker HACR Type – 1, 2 & 3 Pole
Housing
N/A
Battery
N/A
Power
120/240VAC, 15-60A
E-CCB260
Electrical Products
Molded-Case Circuit Breaker HACR Type – 1, 2 & 3 Pole
Housing
N/A
Battery
N/A
Power
120/240VAC, 15-60A
E-CBL-2CT
Pullout Switch / HVAC Disconnector - Lug Output
Overview
The Encore E-CBL-2CT is a pull-to-disconnect HVAC service switch (pullout disconnector) with screw-lug output. Pulling the insulated block disconnects both LINE and LOAD, providing a positive service disconnect for air-conditioning and heat-pump condensing units and similar HVAC equipment.
Specifications
Housing Spec
Molded thermoplastic housing with a captive pull-out block marked LINE, LOAD and PULL TO DISCONNECT. Screw-lug terminals accept field wiring on both line and load sides.
Power
240VAC, 60A / 10 HP max
Compliance
cUL recognized (E360819) | ANSI / UL 1429
Phase
None
Capacity
180A locked rotor | 60A, 10 HP max
Features
Standard Features
Pull-to-disconnect HVAC service switch | Screw-lug (box-lug) output | 240VAC, 50/60 Hz | 180A locked rotor / 60A, 10 HP max | Rated service life 10,000 operations | cUL recognized; ANSI / UL 1429
