E-CAC
Chicago Series Steel Emergency Lighting
Overview

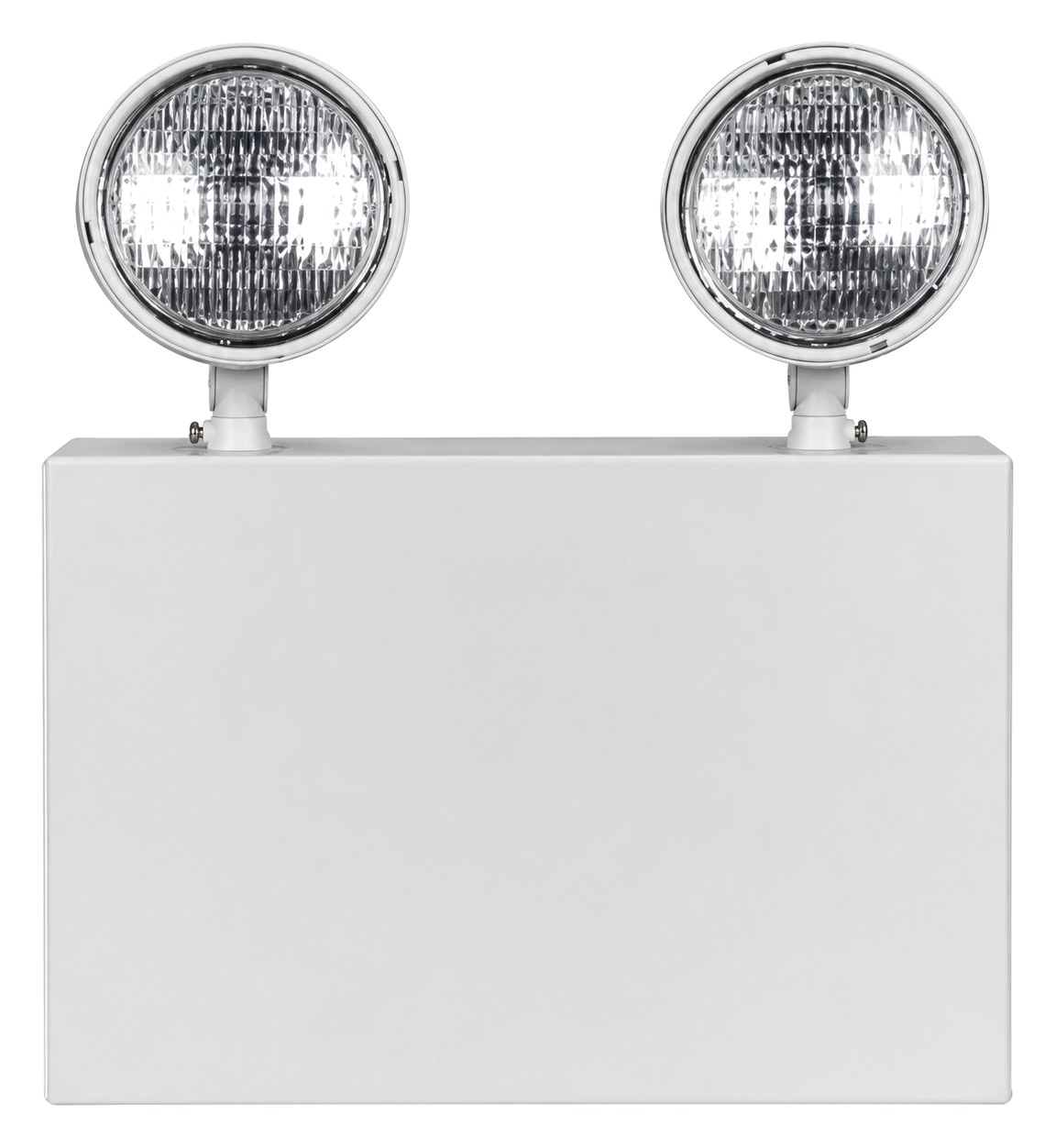

Chicago series steel emergency lighting unit, E-CAC and E-CACL, in a compact low profile design under 3 inches deep. Heavy duty steel construction with a bright white finish, 6 or 12 volt, 24 to 54 watts. Supplied with two metal heads with 12 watt PAR36 halogen sealed beam lamps and a maintenance free valve regulated lead acid battery giving a minimum of 90 minutes. Made in the USA.
Explore similar products
E-CAC
Chicago Series Steel Emergency Lighting
Overview
Chicago series steel emergency lighting unit, E-CAC and E-CACL, in a compact low profile design under 3 inches deep. Heavy duty steel construction with a bright white finish, 6 or 12 volt, 24 to 54 watts. Supplied with two metal heads with 12 watt PAR36 halogen sealed beam lamps and a maintenance free valve regulated lead acid battery giving a minimum of 90 minutes. Made in the USA.
Specifications
Housing Spec
Heavy duty steel, white finish
Power
6 or 12V, 24-54W
Battery Spec
NiCad
Compliance
ETL listed to UL 924 | NEC | NFPA 101
Phase
None
Capacity
24W | 36W | 54W
Features
Standard Features
Under 3 inches deep | Heavy duty steel | Universal 120/277V input | Solid state charger | Low battery voltage disconnect | AC lockout | Brownout protection | High charge and AC ready LEDs | Test switch | Two 12W PAR36 metal heads | Made in the USA
Available Options
Voltmeter (V) | Ammeter (A) | Remote test (RT) | Self diagnostics (E) | Time delay (TD) | No heads (0H) | 1 head (1H) | 3 heads (3H) | Side mounted heads (SM) | Cord and plug, 120VAC (CP) | Nickel cadmium battery (NI)
E-CAC
Contact us to get a quote about this product
Features
Steel
Housing
2 Metal Heads (12W PAR36)
Faces
NiCad
Battery
120/277 VAC
Voltage
Warranty
1yr entire unit | Battery pro-rata (additional)
