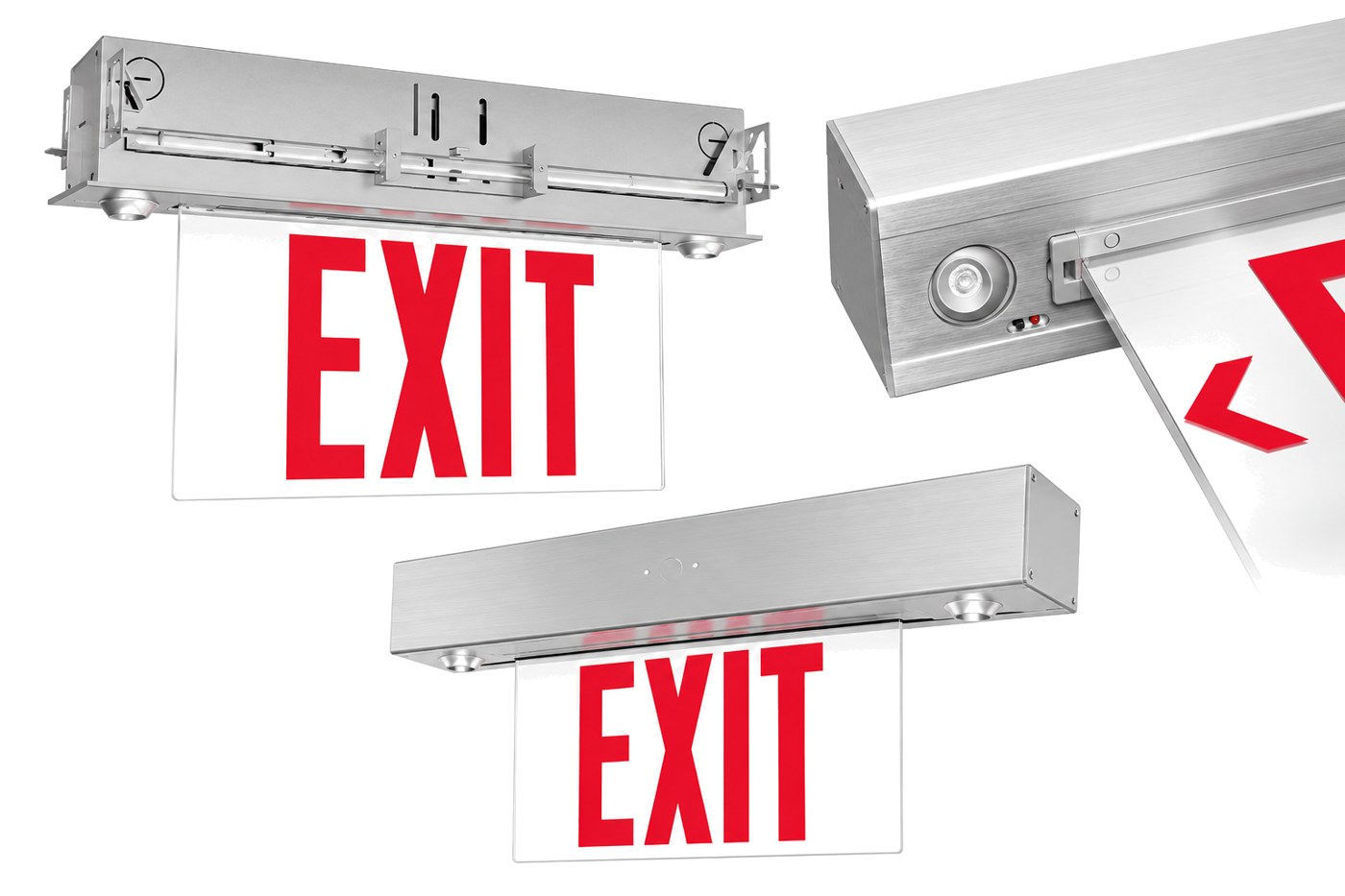

E-C900 U
LED Edge-Lit Combo Exit Signs
Overview
Edge-lit LED exit sign combined with fully adjustable recessed emergency LED lamp heads for a low-profile look. Installs recessed or surface in ceilings or walls, and ships with both single-face (clear) and double-face (mirrored) panels. Brushed aluminum, black or white finish. 90-minute emergency run time with 24-hour recharge on a maintenance-free NiMH battery.
Explore similar products
LC8 Series
Combo Units
Steel
LC8
Housing
Steel
Battery
Lead Calcium
Power
2.5W exit + 5.4W heads
LC8 Series
Combo Units
Steel
LC8
Housing
Steel
Battery
Lead Calcium
Power
2.5W exit + 5.4W heads
LPCX Series
Combo Units
Thermoplastic
LPCX
Housing
Thermoplastic
Battery
Lead Calcium
Power
Exit 2.5W | 5.4W heads standard (higher available) | 4.4-6.7W charge mode
LPCX Series
Combo Units
Thermoplastic
LPCX
Housing
Thermoplastic
Battery
Lead Calcium
Power
Exit 2.5W | 5.4W heads standard (higher available) | 4.4-6.7W charge mode
E-C900 U
LED Edge-Lit Combo Exit Signs
Overview
Edge-lit LED exit sign combined with fully adjustable recessed emergency LED lamp heads for a low-profile look. Installs recessed or surface in ceilings or walls, and ships with both single-face (clear) and double-face (mirrored) panels. Brushed aluminum, black or white finish. 90-minute emergency run time with 24-hour recharge on a maintenance-free NiMH battery.
Specifications
Mounting Type
Recessed or Surface, Wall or Ceiling
Housing Spec
Aluminum extrusion (surface) or steel (recessed), acrylic panels
Power
Exit under 5W | 2 x 2.5W LED heads (1.5W with E option)
Battery Spec
NiMH
Compliance
UL 924 | UL damp location | NEC | NFPA 101 | CEC
Phase
None
Features
Standard Features
Edge-lit exit with adjustable LED heads | 6 inch letters, 3/4 inch stroke | Field-selectable chevrons | Single and double-face panels included | Surface canopy and recessed hardware included | 120/277VAC dual input | Low voltage disconnect | Test button | 90-minute run time, 24-hour recharge | 31 ft on-center spacing (non-E)
Available Options
Self-test/self-diagnostics (E) | 3W remote capable (RC) | Green legend (G) | Black finish (B) | White finish (W) | Green single mirror panel (C900U-G-FP) | Red single mirror panel (C900U-R-FP) | Pendant adapter (C900U-PA)
E-C900 U
Contact us to get a quote about this product
Features
Extruded Aluminum
Housing
Single or Double, 2 LED Heads
Faces
NiMH
Battery
120/277 VAC
Voltage
Warranty
3yr manufacturing defects | 5yr battery pro-rata
